Excavator Tractor Backhoe Loader Max Digging Depth 1950 mm

Product Description

Product Description

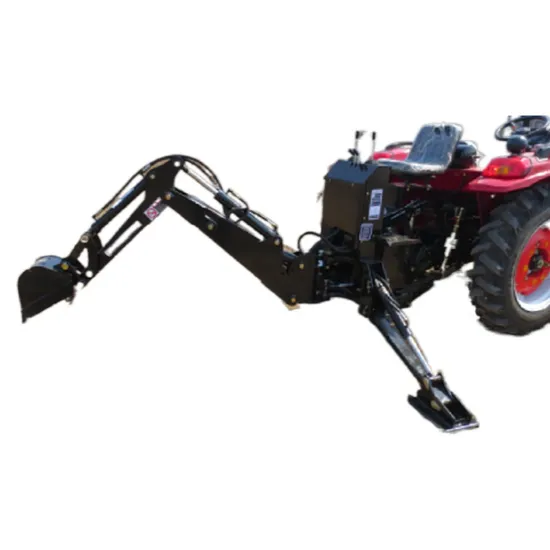

Kinds Of Backhoes For Tractor Farming Work,which can match different tractors, such as 25hp/30hp/35hp/40hp/50hp/60hp/70hp/80hp/90hp/100hp/120hp/130hp/150hp.etc.
Detailed Photos
Product Parameters
Tractor backhoe specifications:

Model:	LW-6	LW-7	LW-8	LW-9
Tractor power required:	20-30hp	35-50hp	45-70hp	60-90hp
3-point Linkage:	Cat-1	Cat-1	Cat-1&2	Cat-1&2
Digging Depth(two foot flat bottom)	1750mm	1950mm	2250mm	2550mm
Reach from center line of Swing pivot:	2600mm	2900mm	3200mm	3600mm
Loading Height(bucket at 60°) :	1720mm	1840mm	1930mm	2210mm
Transport Height(maximum):	1840mm	2060mm	2130mm	2480mm
Extend Height:	2870mm	3110mm	3240mm	3590mm
Loading Reach(bucket at 60°):	950mm	1180mm	1140mm	1360mm
Transport Overhang:	1080mm	1110mm	1220mm	1270mm
Undercut:	730mm	830mm	470mm	520mm
Bucket Rotation:	180°	180°	180°	180°
Stabilizer Spread(up position):	1310mm	1310mm	1310mm	1310mm
Stabilizer Spread(down position):	2100mm	2100mm	2340mm	2340mm
Swing Arc:	180°	180°	180°	180°
Bucket width:	300mm	400mm	450mm	500mm
Bucket volume:	0.036cbm	0.045cbm	0.052cbm	0.063cbm

Workshop Show

Packaging & Shipping

FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
