Product Description
Product Description

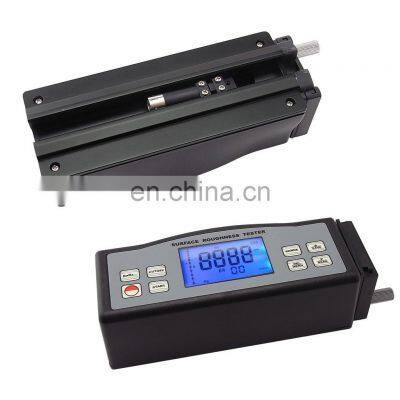

Product DescriptionHigh Quality Pocket SRT-6210 surface roughness measurement deviceSRT-6210 Surface Roughness Tester.Widely used in production site to measure surface roughness of various machinery-prcessed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.Detailed ImagesSRT-6210 Surface Roughness Tester.* Be compatible with standards of ISO,DIN,ANSI and JIS.*Smal in size ,light in weight and easy to use.* Highly sophisticated inductance sensor.*SRT-6210 can measure parameters of Ra,Rz,Rq,Rt.With four wave filtering methods: RC,PC-RC,GAUSS and D-P.Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.*SRT-6200 can measure parameters of :Ra,Rz.*Built-in lithium ion rechargeable battery and control circuit with high capacity.*Manual or automatic power off.Meteric /Imperial.*Use RS-232 data output to connect with PC.*Provide Bluetooth data output chioce..ModelGB/T6062,ISO4278,DIN4768,JIS B,ANSI46.1ParanetersRa,Rq,Rz,RtAccuracy<=+-10%Fluctuation of Display Value<=6%Resolution0.001/0.01/0.1Radius of probe pin5μmMaterial of probe pinDiamondMeasurement Force of probe4mN(0.4gf)Probe angle90Vertical Radius of Guiding Head48mmMaximum Driving Stroke17.5mm/0.7inchPower SupplyBuilt-in Rechargeble Li-ion BatteryDimensions140*52*48mmWeight420gRelated ProductsVM-6320 Vibration Meter HM-6560 Leeb Hardness Tester TM-8812 Ultrasonic Thickness CM8828 coating Gauge thickness gaugePacking & Delivery1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.
>>
