Basic Info.
Max.Capacity
50-100 L/min
Structure
Single-stage Pump
Application
Submersible Pump, Clarified Water Pump, Sewage Pump
Transport Package
Wooden Box
Specification
Aluminum shell
Production Capacity
10000
Product Description

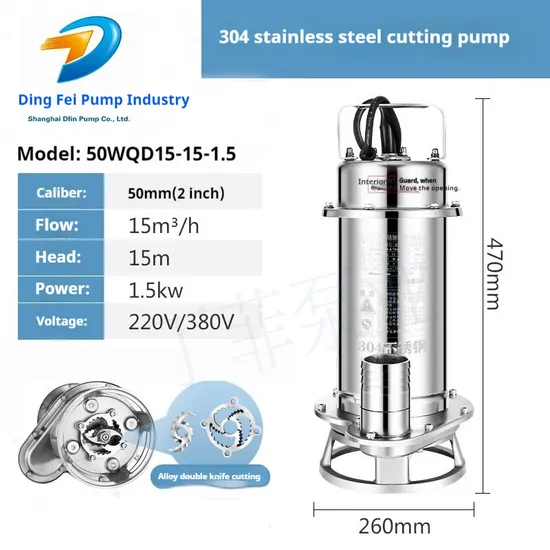

50WQD15-15-1.5 Household small stainless steel septic tank pumping small mud cutting pump
cutting-type submersible sewage pump adopts double-end mechanical seal and rotating impeller. The impeller is made of stainless steel, which is wear-resistant, non-clogging and non-winding. It has the advantages of small size, compact structure and easy portability. cutting submersible sewage pump is mainly used to discharge domestic wastewater, sewage, human feces and solid suspended solids and non-corrosive media containing short fiber paper chips, wood chips, starch, sediment, ore particles, etc. The temperature of the pumped liquid does not vary. Over 40ºC, density not more than 1200kg/m3, ph value 6~9
50WQD15-15-1.5 Household small stainless steel septic tank pumping small mud cutting pump
The electric pump of the submersible sewage pump with cutting knife uses high-quality carbide, a dynamic sealing structure that combines double-end mechanical seals and skeleton oil seals. For the normal operation of the electric pump and the safety of workers, users should equip the electric motor with a leakage protector. , when working for a long time, the motor of this pump is allowed to expose the liquid surface, which shall not exceed 1/2 of the height of the motor, and the temperature of the pumped dirt shall not exceed 40°C.
Cutting lift septic tank biogas debris mud submersible sewage pump
The cutting pump is a pump specially used for cutting solid objects. It is mainly used to handle liquids containing solid materials such as fibers, cloth, waste, and suspended solids. Cutting pumps are usually used in sewage treatment, industrial sewage, papermaking, textiles, food processing and other fields to handle liquids that need to cut solid objects.
Product Description 50WQD15-15-1.5 Household small stainless steel septic tank pumping small mud cutting pump
It has strong sewage passing capacity and good belt cutting performance. It can chop long fibers, plastics, paper, belts, cloth strips, straw, rope and other impurities in the sewage and discharge them. WQK sewage pump with cutting device is especially suitable for narrow working surfaces such as shipbuilding, communications, shipping, basements, and excavation of ponds and rivers, especially individual food processing plants, individual breeding sites, drilling industries, water pit wells, and paper mills , used in paint factories.
Scope of application of cutting submersible sewage pump
cutting submersible sewage pump is mainly used for engineering sewage and domestic sewage.
like:
(1) Sewage treatment and circulating water transportation for small and medium-sized enterprises.
(2) Slag slurry pumping in factories and mines such as food, papermaking, brewing, steel and non-ferrous metals, tanning, textiles, pharmaceuticals, cement plants, etc.
(3) Used in construction sites, engineering foundation construction, municipal facilities, and water plants.
(4) Sewage discharge from underground basements of various high-rise buildings, civil air defense pits, subways, etc.
(5) Chicken farms, pig farms, various breeding industries, fish ponds are used for pumping water to clear ponds, increasing oxygenation, pumping human and animal excrement and urine in septic tanks and other occasions.
Note: The main performance and data of the cutting submersible sewage pump are the same as those of the wqk/qg type except that it does not have a cutting device.
Detailed Photos
Product Parameters Packaging & Shipping Export wooden box packaging
Company Profile Shanghai Dfin Pump Co., Ltd. is located in Jinshan District, Shanghai, products are widely used in chemical industry, sewage treatment, dust removal, environmental protection, fertilizer, pesticides, paper, printing and dyeing, pharmaceutical, metallurgy, food, oil, water and other industries, over the years by the majority of users. For the majority of users to provide high-quality pump products and more perfect service. Main business: Shanghai Dfin Pump Co., Ltd. is mainly engaged in the sale of pipeline pump Sewage Pump, the main products are: ISG vertical pipe centrifugal pump ISW horizontal centrifugal pump IRG hot water pipe pump IHG stainless steel pipe centrifugal pump ISGB portable dismantling pipe centrifugal pump low-speed pipe centrifugal pump SG pipe booster pump IH chemical centrifugal pump Pipe Pump Model pump selection and other products; The main sewage pump products are: Sewage Pump Type submersible sewage pump with cutting sewage pump stainless steel sewage pump ZW self-priming sewage pump QW/WQ non-blocking sewage pump QDX household submersible sewage pump AS tear-type sewage pump explosion-proof submersible sewage pump automatic mixing sewage pump pipe sewage pump vertical sewage pump Liquid sewage pump and other products. Sewage pump models are mainly QW, WQ, JYWQ, JPWQ, WQK/QG, AS/AV, GW, LW, ZW series. The product sales network covers twenty-six provinces, cities and districts. Company pursuit: Customer satisfaction is the pursuit of Dfin pump industry. The company has an experienced, practical, innovative high-quality team, according to the actual needs of customers to develop and improve products, provide free consultation, installation, debugging, warranty and other services. Welcome new and old customers to call, letters, people, business negotiations. Corporate goals: Dfin pump industry is characterized by looking for small differences in Datong, colleagues can do, I believe we will be able to do, colleagues can not do, we try to do better. We not only sell products, but also hope to provide you with solutions and services in the actual cooperation. Dfin pump industry sincerely look forward to working with you! After Sales Service Principles for selecting sewage pumps - DFIN Pump Industry
1. High mechanical reliability, low noise, and minimal vibration.
2. Economically, it is necessary to comprehensively consider the total cost of equipment, operation, maintenance, and management fees to minimize them.
3. Make the selected pump type and performance meet the requirements of process parameters such as device flow rate, head, pressure, temperature, cavitation flow rate, and suction stroke.
4. Must meet the requirements of medium characteristics.
For pumps that transport flammable, explosive, toxic, or valuable media, reliable shaft seals or leak free pumps are required, such as magnetic drive pumps, diaphragm pumps, and shielded pumps
For pumps transporting corrosive media, it is required that the convection components use corrosion-resistant materials, such as AFB stainless steel corrosion-resistant pumps and CQF engineering plastic magnetic drive pumps.
For pumps transporting media containing solid particles, it is required that the convection components be made of wear-resistant materials, and if necessary, the shaft seal should be flushed with clean liquid.
FAQ Q1 What's the MOQ for your production? A:The MOQ is 1 pcs/set Q2 Is it all right to make customer's own brand name? A: Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details. Q3 Are you a manufacture or trading company? A: Our company is a professional manufacturer and trader that is concerned with the design,development nd production Q4 What are your payment terms?
A: Normally, its 40% T/T as deposit, 60% before delivery. We will show you photos of the products and packaging before paying the balance. L/C is also acceptable.
>>
