30MPa Aerospace Isostatic Graphite Moulds for Copper Bar

Product Description

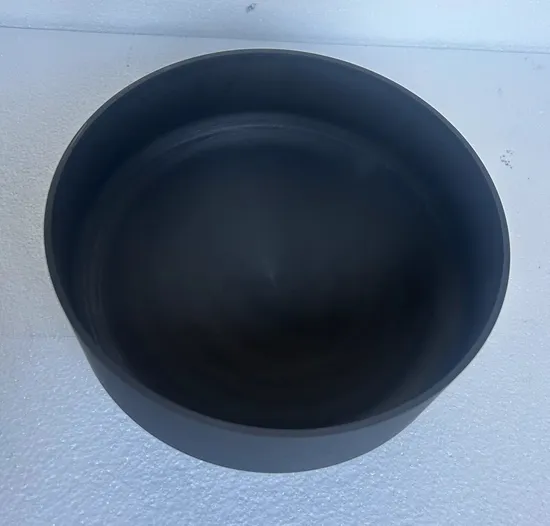

Custom Graphite Mold Graphite Die For Copper Tube Continuous Casting

Products details:
High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast performance:
1. Excellent thermal conductivity and conductivity.
2. Low linear expansion coefficient, good thermal stability and thermal shock resistance.
3. Chemical resistance is not easy to react with most metals.
4. In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with temperature rise
5. Good lubrication and abrasion resistance.
6. Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.

High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast Application:
1. Nonferrous metal continuous casting and semi-continuous casting graphite mould.
2. Mold for pressure casting.
3. Graphite mould for centrifugal casting.
4. Hot pressing mold.
5. Mould for glass forming.
6. Sintering mold and other diamond sintering


High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast Materials: JC-G347

Property	Unit	Value
Bulk density	g/cm3	1.85
Specific electrical resistivity	µΩm	11
Young's modulus (dynamic measurement)	Gpa	10.8
Flexural strength	Mpa	49
Shore hardness		58
C.T.E	X10-6/°C	5.5
Thermal conductivity	W/mk	116

*Value might be changed due to material size
Typical property Data JC-GSK

Property	Unit	Value
Bulk density	g/cm3	>=1.72
Specific electrical resistivity	µΩm	<=8.5
Max. grain size	mm	0.8
Flexural strength	Mpa	>=13.5
Compressive strength	Mpa	>=30
C.E.T	X10-6	<=2.5

*Value might be changed due to material size




Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.

---
