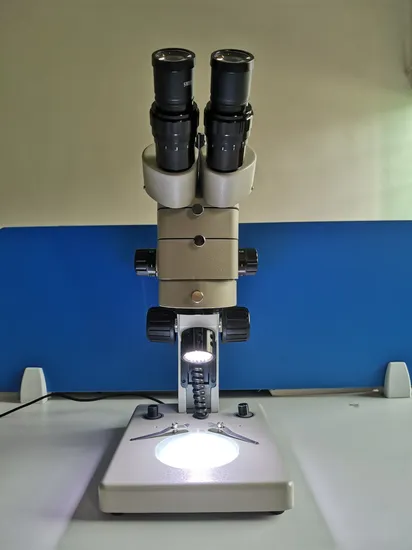

Binocular Zoom Stereo Microscope (XTF-2021)

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.

XTF-2021

Magnification

5.5-55X

Type

Stereomicroscope

Number of Cylinder

Binoculars

Mobility

Desktop

Stereoscopic Effect

Kind of Light Source

Ordinary Light

Shape

Cylindrical Shaped Lens

Usage

Research

Principle

Optics

Principle of Optics

Polarizing Microscope

Name

Binocular Zoom Stereo Microscope

Model

(Xtf-2021)

Lens Zoom Range

0.55X, 1X, 1.75X, 3X, 5.5X

Eyepiece

Wf10X/23mm

Working Distance

95mm

Total Magnification

5.5X, 10X, 17.5X, 30X, 55X

Field of View

41.8mm, 23mm, 13.1mm, 7.7mm, 4.2mm

Interpupillary Distance

48mm-75mm

Binocular Tube

Inclined 45o

Diopter Adjustment

5 Diopter

Transport Package

Standard Exporting Packing

Specification

SGS

Trademark

Leader

Origin

China

HS Code

9011100000

Production Capacity

10, 000PCS/Year

Product Description

Binocular Zoom Stereo Microscope (XTF-2021)

Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC
Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories for this microscope:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x

Technical data
Lens zoom range	0.55X, 1X, 1.75X, 3X, 5.5X
Eyepiece	WF10X/23mm
Working distance	95mm
Total magnification	5.5X, 10X, 17.5X, 30X, 55X
Field of view	¢ 41.8mm, ¢ 23mm, ¢ 13.1mm, ¢ 7.7mm, ¢ 4.2mm
Interpupillary distance	48mm-75mm
Binocular tube	inclined 45º
Diopter adjustment	± 5 diopter
Binocular body Rotation	360º

Eyepiece	WF10X		WF15X		WF20X		WF25X
Auxiliary lens	Magnification	Field of view	Magnification	Field of view	Magnification	Field of view	Magnification	Field of view	Working distance(mm)
0.5X	2.8X 5X 8.8X 15X 27.5X	¢ 93.6 ¢ 46 ¢ 26.3 ¢ 15.3 ¢ 8.4	4.1X 7.5X 13.1X 22.5X 41.3X	¢ 58.2 ¢ 32 ¢ 18.3 ¢ 10.7 ¢ 5.8	55X 10X 17.5X 30X 55X	¢ 47.3 ¢ 26 ¢ 14.9 ¢ 8.7 ¢ 4.7	6.9X 12.5X 21.9X 37.5X 68.8X	¢ 43.6 ¢ 24 ¢ 13.7 ¢ 8 ¢ 4.4	200
0.75X	4.1X 7.5X 13.1X 22.5X 41.3X	¢ 55.8 ¢ 30.7 ¢ 17.5 ¢ 10.2 ¢ 5.6	6.2X 11.3X 19.7X 33.8X 61.9X	¢ 38.9 ¢ 21.3 ¢ 12.2 ¢ 7.1 ¢ 3.9	8.3X 15X 26.3X 45X 82.5X	¢ 31.5 ¢ 17.3 ¢ 9.9 ¢ 5.8 ¢ 3.2	10.3X 18.8X 32.8X 56.3X 103.1X	¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9	125
1X	5.5X 10X 17.5X 30X 55X	¢ 41.8 ¢ 23 ¢ 13.1 ¢ 7.7 ¢ 4.2	8.3X 15X 26.3X 45X 82.5X	¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9	11X 20X 35X 60X 110X	¢ 23.6 ¢ 13 ¢ 7.4 ¢ 4.3 ¢ 2.4	13.8X 25X 43.8X 75X 137.5X	¢ 21.8 ¢ 12 ¢ 6.9 ¢ 4 ¢ 2.2	95
1.5X	8.3X 15X 26.3X 45X 82.5X	¢ 27.9 ¢ 15.3 ¢ 8.8 ¢ 5.1 ¢ 2.9	12.4X 22.5X 39.4X 67.5X 123.8X	¢ 19.4 ¢ 10.7 ¢ 6.1 ¢ 3.6 ¢ 1.9	16.5X 30X 52.5X 90X 165X	¢ 15.8 ¢ 8.7 ¢ 5 ¢ 2.9 ¢ 1.8	20.6X 37.5X 65.6X 112.5X 206.3X	¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5	55
2X	11X 20X 35X 60X 110X	¢ 20.9 ¢ 11.5 ¢ 6.6 ¢ 3.8 ¢ 2.1	16.5X 30X 52.5X 90X 165X	¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5	22X 40X 70X 120X 220X	¢ 11.8 ¢ 6.5 ¢ 3.7 ¢ 2.2 ¢ 1.2	27.5X 50X 87.5X 150X 275X	¢ 10.9 ¢ 6 ¢ 3.4 ¢ 2 ¢ 1.1	35
