Welcome to visit

Liquid Silicon Rubber Injection Machine

US$28,000.00-28,600.00 1 Piece (MOQ)

Basic Info.

Plastic Type
Liquid Silicon Rubber
Clamping Way
Mechanical
Automation
Non-Automatic
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
176
Specification
CE, ISO
Trademark
Mengkwa
Origin
Zhejiang, China
Production Capacity
180-750

Product Description

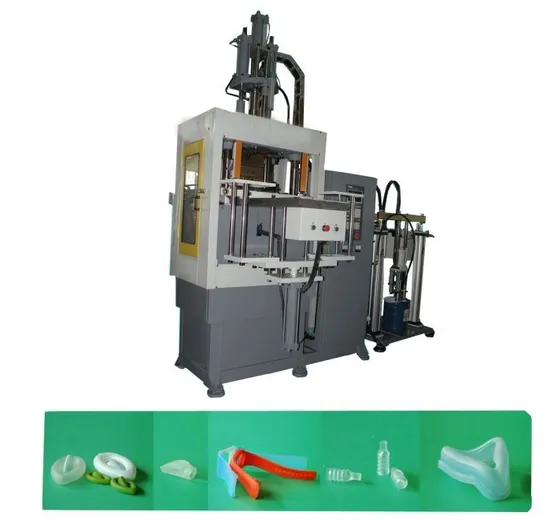

Vertical LSR (Liquid Silicon Rubber) Injection Machine
CLAMPING FORCE:35 - 200 Ton
INJECTION CAPACITY: 0.5 - 50 oz MAIN FEATURES:
.Vertical clamping,vertical injection.
.Space-saving compact design makes the product take-out
more convenient.
.Suitable for multi-purpose injection molding and it works
partcularly well in insert molding.
Specifications:
Product alias: silicone injection molding machine
Product use: the silicone molding
Screw diameter: 40 (mm)
The screw rotation speed: 0-300 (RPM)
Shoot rubber pressure: 146 (Mpa)
injection capacity: 176 (cubic centimeter)
The motor power: 15 (kw)
Clamping force: 833 (kN)
Mould stroke: 420 (mm)
Weight: 3700 (kg)
Dimension: 2090 * 1700 * 2730 (mm)
Product type: brand new
Processing custom:

Horizontal type
MWK-L6068

MWK-L6068-2

MWK-L4048

MWK-L4048-2

MWK-L5058

MWK-L5058-2
injection unit
shot volume

350g

350g

120g

120g

250g

250g

injection rate

30g/s

30g/s

30g/s

30g/s

30g/s

30g/s

injection pressure

19.6T

19.6T

19.6T

19.6T

19.6T

19.6T
clamping unit
clamping force

150T

130T

95T

95T

120T

95T

opening stroke

150-550mm

150-550mm

150-550mm

150-550mm

150-550mm

150-550mm

tie-bars space

600*680mm

600*680mm

400*480mm

400*480mm

500*580mm

500*580mm

ejection force

7.8T

7.8T

7.8T

7.8T

7.8T

7.8T

ejection stroke

150mm

150mm

150mm

150mm

150mm

150mm
other
pump pressure

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

motor power

7.5kw

7.5kw

7.5kw

7.5kw

7.5kw

7.5kw

heater power

9kw

9kw

9kw

9kw

9kw

9kw

mould orientation ring diameter

φ100mm

φ100mm

φ100mm

φ100mm

φ100mm

φ100mm

machine weight

4.5T

4.7T

2.7T

2.8T

3.8T

2.9T

machine dimension

1.9*2.3*3.1m

2.1*1.8*3.1m

1.5*1.9*3.0m

1.7*1.5*3.0m

1.7*2.1*3.0m

1.9*1.6*3.0m

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
