US$11,800.00-23,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Processing Object
Bearing, Gear, Mold Manufacturing
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001, SGS
Machine Type
Surface Grinding Machine
Key Selling Points
Easy Operation
Function
Grinding Material
Machinery Test Report
Provided
Applicable Industries
Manufacturing Plant, Machinery Repair Shops
Transport Package
Non-Fumigation Plywood Case
Production Capacity
15000 Units Per Year
Product Description
Product Description

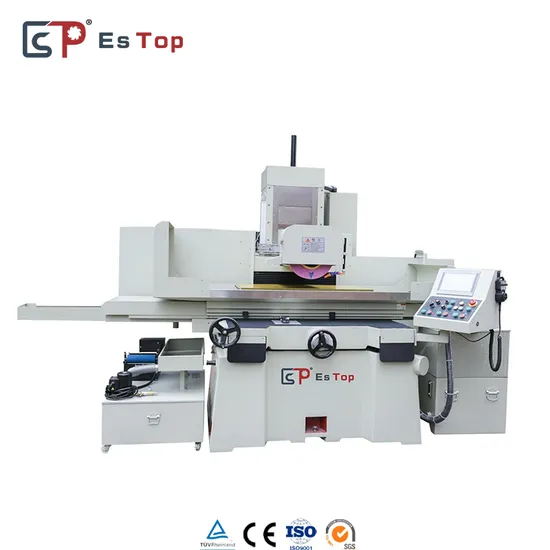

Estop Surface Grinding Machine ETA50100NC High Precision Heavy Duty Grinding Machine
Saddle Type Surface Grinding:
These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
-High precision spindle and spindle motor with lower vibration and noise
-Durable and suitable for precision grinding
-Intensive research planning and manuacture by high-elasticity structure
-Excellent durability and heavy grinding available
-4-point suspension mode cross travel guide way
Features and applications:
1. The guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy. |
| 2. The spindle independent design to add one more bearing, increase a bearing model, both heavy rough 1, the guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy. grinding can also be finished. |
3. The use of high-quality motor, V3 level vibration, low noise, small vibration, reliable quality. | |
4. The main castings of the machine tool are made of advanced cast iron. After annealing treatment, vibration aging treatment and removal of the internal stress of the castings, the stability of the castings is greatly improved and it is not easy to deform. |
Product Parameters:
Main item | Saddle Type Surface Grinding machine | Unit | ETA-50100 | ETA-50120 |
Worktable | Electromagnet table size(x*y) | mm | 1000x500 | 1200x500 |
Left and right Xaxis travel | mm | 1200 | 1400 |
Front/back Y axis travel | mm | 560 |
Max center of wheel to table | mm | 495 |
Worktable Maximum loading copacity | kg | 700 |
Table t-slot specification | mm*n | 18x3 |
Worktable feed speed | m/min | 5-30 |
In front and back Feed | Front/back Automatic feed | mm | 0.1-8 |
Front/back(50HZ/60HZ) Fast moving speed | mm/min | 990/1190 |
Grinding wheel | Grinding wheel size max | mm | Φ350xΦ127x20-50 |
(50HZ/60HZ) Grinding wheel speed | R.P.M | 1450/1740 |
Z axis Up and down | Up/down Fast moving speed | mm/min | 230 |
Motor | Spindle motor | HP*P | 10x4 |
Up and down, The Z axis motor | W | 750 |
Hydraulic motor | HP*P | 3x6 |
Cooling motor | W | 90 |
In front and back servo, The Y axis motor | W | 1500 |
Machine Size | Machine Tool Profile size L*W*H | mm | 3200 x 2100x 2360 |
Weight | kg | ≈3800 | ≈3850 |
Product Category
One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
>>
