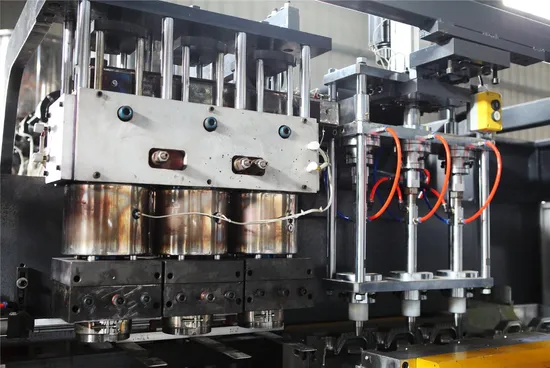

Servo Blow Molding Machine Made in China Sf-80

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

Code	SYJII-SF-80-3
Max Product Volume	2L
Output	150pc/h
Machine Size	4000mm*3500mm*2500mm
Weight	6000KGS
Voltage&Frequency	Clients' Specified
screw Diameter	80mm
L/D Ratio	1:23
Die Head Qty	3pcs
Max Center Distance of Die Head	180
Extrusion Motor Power	30KW
Total Power	70KW
Average Energy Consumption	20kw
Extruder heating power	18kw
Number of hating zone	4
Oil pump drive power	15KW
Max plasticizing capacity	90-100kg/h
Platen Size	420mm*400mm
Max mould size	550mm*380mm*220mm
Clamping force	110KN
Opening Stroke	200mm-250mm
Moving Stroke	600mm
Cooling water pressure	0.3MPa
Water consumption	30L/min
Air pressure	0.6Mpa
Air consumption	0.6centiare/min

---
