Basic Info.
Application Area
Pharmaceutical
Main Material
Stainless Steel
Stirring Type
Ribbon Mixer
Materials
Stainless Steel304, 316
Surface Treatment
Polishing
Jacket
Heating or Cooling Jacket Avaible
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
CE, ISO9001: 2008, SGS
Production Capacity
200 Set Per Quarter
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
200.000kg

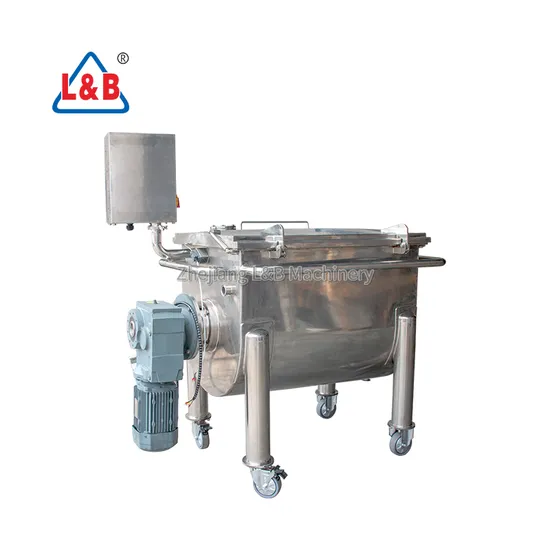

Product Description
Product Description
Product Features
1.It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2.It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to frangible material.
3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4.Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time.
5.The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
| Reference parameters of horizontal ribbon mixer/ mixing vessel |
| Product name | BLS horizontal ribbon detergent powder mixing vessel |
| Brand name | L&B |
| MOQ | one set |
| Material | ss304 and ss316 stainless steel |
| Agitator | ribbon mixer(can be customized according to feeding materials) |
| Capacity | 100-5000L |
| Motor type | horizontal motor |
| Surface treatment | polishing |
| Package | plywood case |
| Delivery | by sea, air or express |
| Optional parts | reducer, VFD, manhole, wheels, heating and cooling jacket etc. |
More specification for reference:
Packaging & Shipping
Delivery and package:
Company Profile
Our company:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Service:
Please contact our After-sales service department in time within 30days after you received the cargo. |
|
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
Problems confirmation: |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days.
|
Serious problem: |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
>>
