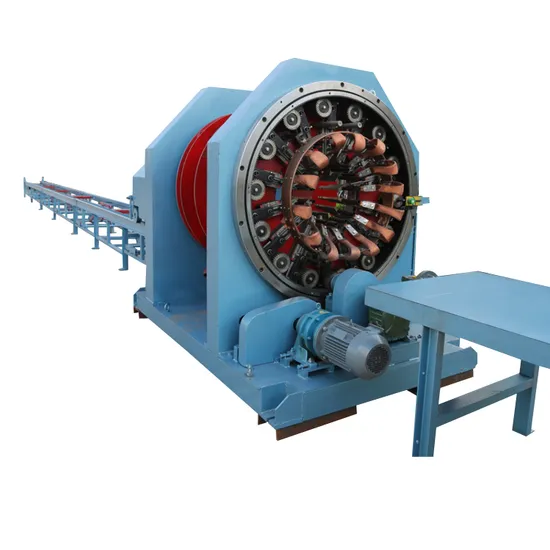

Automatic Wire Concrete Pole Wire Cage Welding Making Machine

US$42,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
concrete pole making machine
Customized
Customized
Theory
Inverter
Application
Industry
Type
Pole Cage Welding Machine
Color
Customized
Cage Pitch
0-150mm
Diameter of Cages
190 , 230,270,310,350 Series
Wire Welding Speed
Max3000mm/Min
Welding Power
200kVA
Welding Strength
≤5%
Total Weight of Welder
6t
Driving Power
8.4kw
Length
4-18m
Transport Package
Nude Package
Specification
190-350mm
Trademark
Amitycare
Origin
China Jiangsu
HS Code
8515219900
Production Capacity
300pieces/Year

Product Description


The full automatic concrete pole wire cage welding making mahcine (or pole caging machine) is professional in rebar cages
used to produce the high-strength concrete pole ,The welder is widely applied to reinforcement cage welding
by self-stressing and prestressing pretensioning method and post-tensioning method

Diameter of cages
190 , 230,270,310,350 series
Length of welded reinforcement cage
7M-15M

Number of longitudinal reinforcement
12, 14, 16 pcs
Diameter of longitudinal reinforcement ø12.1, ø14, ø16
Diameter of hoop reinforcement ø3.5- ø6
Cage pitch 0-150mm
Wire welding speed MAX3000mm/min
Driving power 8.4KW
Welding power 200KVA
Main motor RPM 0-64r/min
Welding mode: electric resistance welding
Control mode automatic control
Welding material any reinforcements with carbon content less than 0.20%
Welding strength ≤5%
Pulling force or shearing force at weld joint ≥200kg
Cooling mode of welding transformer air cooling, self cooling
Welder power supply 380V±5% 50HZ
Ambient temperature -5ºC--+35ºC
Relative humidity <85%
Total weight of welder ≈6T
Product Name Prestressed concrete electric pole cage welding machine

Our service
1.One year warranty under normal use and we supply maintenance for life for free.
2.24 hours technical support by Phone, E-mail, SKYPE, or Remote Control.
3.English operation manual, popular and easy to understand.
4.Free trainings to make sure you master the operation of cnc router.
steel wire cage welding machine for concrete pole is a special-purpose welder used to-produce the high-strength
concrete pole reinforcement cages. The welder is widely-appliedto reinforcement cage welding by self-stressing
and prestressing pretensioning-method and post-tensioning method.


1. Host speed up to 43 r/min, is three times as much as the current domestic similar equipment.
2. Failure rate is extremely low, is 1/20 of the similar products.
3. High weld strength, unlike similar products have a very serious phenomenon of reinforcement.
4.Can cage welding square body, the function, can save factory in hooped cost USD2000-3000-
5. Welding copper head loss was only about 1/30 of the similar products, annual cost saving
about USD2000-3000.
6. l general manufacturers use our products to meet the production requirements, compared with similar
products to save labor costs RMB 100000 per year, energy costs about USD2000-3000.
7.Use this product than use similar equipment can save USD30000-50000.
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui machinery
manufacturing co;, all abroad (overseas) tasks and international businesswill be undertaken by "amitycare ".
We are manufacturers of cage welding machine(concrete pile,pole,pipe )centrifugal spinning machine
,concrete mould(pile ,pole,pipe) ,ring bending machine,heading machine ,endplate, ,tension jack
for pre-stress .feeding machine for different capacity welding machine ,steel wire Processing machine etc.
we also can supply setting up a new factory full line service . We have already exported various kinds of
concrete pile , pole and pipe concern making machines to overseas countries and regions such as indonesia,
parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
