US$1,700.00-1,800.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Object
Mixed Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Applicable Materials Shape
Short strip
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Mixing Drum Shape
Circular Groove
Additional Capabilities
Drying, Coating
Operating Type
Cycle Operating
After-Sales Service
24-Hour Online Service
Max. Loading Volume (L)
10 L
Range of Spindle Speed(r.p.m)
36 - 63 R
Dimension(L*W*H)
1400*590*750 mm
Homogeneity Degree
CV<=5-7%
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Pump, Engine
Period of The Machine
3-6 Min
Transport Package
Negotiate
Specification
Custom titanium and stainless steel body
Production Capacity
20000 Sets/Month
Packaging & Delivery
Package Size
140.00cm * 59.00cm * 75.00cm
Package Gross Weight
500.000kg
Product Description
Product Description

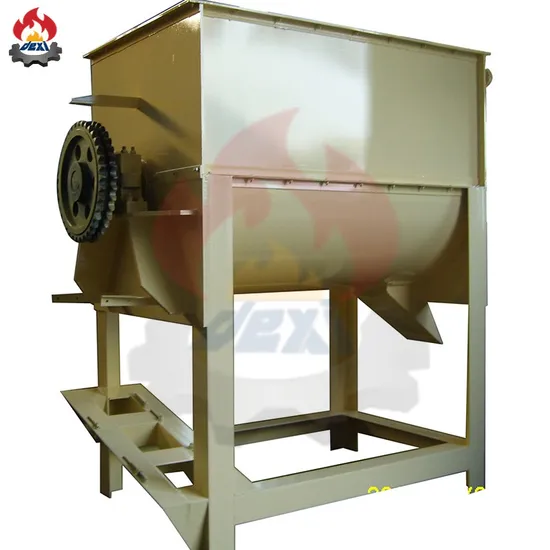

Single-shaft Animal Feed Mixer Machine
SHJ is Single-shaft mixer. The mixer is widely used in mixing the powder raw material in many industries, such as feed factory, breed aquatics factory, chemical factory, food factory and flourmill and so on. The mixer can let the materials mix evenly and ensure the quality of the feed.
The SHJ single shaft mixer and SSHJ double shaft mixer are horizontal and a batch-by-batch type mixer. It has the special rotor structure and high degree of homogeneity. There is the wide-door or full-opened door at the bottom, no residual after discharge materials out. Both the ends of machines are designed double deck, avoid to leakage materials.
Product Parameters
Product Name
| Single-shaft mixer
| Model
| SHJ100
|
Output m³/btach
| 0.20 m³/btach
| Colour
| customized
|
Power
| 3 kw
| Useful volume
| 0.2 L
|
Homogeneity degree
| CV≤5-7 %
| Period of the machine
| 3-6 s
|
Weight
| 0.35 T
| Dimensions
| 1400*590*750 mm
|
Detailed Photos
Product Detail Diagram
1,Horizontal Ribbon Mixer is one kind of slot type mixer for powder and paste.
2,The main components are U type container,ribbon mixing blades and transmission parts.
3,During the mixing process,the materials in container are doing mixing movement driven by the ribbon spiral mixing blade.
1,The ribbon blades are generally made of double or triple layers.
2,All the ribbon blades are installed on one single horizontal axis,the inner blade and outer blades are doing opposite rotation during mixing process.
3,The material form a vortex in the flow during these two movement to speed up the mixing speed and improve the uniformity. Due to the agitation of the above movement, the materials are quickly and evenly mixed in a short time, so it is a high-efficiency mixing device with wide application, strong adaptability and good performance.
1. High uniformity. The two-way rotation of the cylinder and the rotor can generate a more intense force, achieve a more uniform state, and help improve the quality of subsequent production products.
2. High efficiency, can achieve uniform mixing effect in a very short time, time-consuming and reduce production costs.
3. The operation is convenient, and the equipment is controlled by the automatic control system, which is more convenient to operate and reduces labor costs.
Certifications
1. Our machine warranty is one year. During the warranty period, if the machine wearing parts are damaged and the factory is responsible for the replacement. The foreign long-distance freight is borne by the customer.
2. If foreign customers need on-site service, the fee provided by the buyer is as follows: visa fee, room and board, domestic and
international transportation and labor costs.
3. The factory provides lifetime technical support and continuously supplies spare parts.
Welcome to visit our company for more in-depth communication on the machine.Our customers have visited us before.There are many photos here.I hope you can have a rough understanding of us.
Packaging & Shipping
1. First the machine would be covered by plastic, and then packed in export wooden case.
2. we will provide the machine as quickly as possible after the cusomer playing the order, also with high capacity. we will track the shipping for customer whenever they need.
Company Profile
Shandong Dexi Machine Co., Ltd is professional supplier for the biomass pellet machines and complete pellet production line. our products involve , wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other related auxiliary equipment.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Any interesting for the wood pellet making machines, please feel free to contact us.
FAQ
1. Are you a factory or trading company?
We are the SGS and CE certificated manufacturer, specialized in pellet production line field for 15 years.
2. How about the product quality?
We adopt excellent SUS304 as machine material.
Each machine will be tested before delivery to you. All electrical components are made of reliable CHNT well-known brands.
3. What about the warranty and after-sale service?
Our machine has 1-year guarantee, whole life technical support;
Engineers are available to serve overseas.
4. Are you providing training about machine installation and operation?
Yes, our engineer can teach your workers in our or your factory.
5. Is it possible to use our logo or special custom design?
Yes, we have a professional technology team for new research and development.
6. How long the lead time is?
Usually 3-10 days, depends on the machine quantity you ordered.
7. What is the price term and payment method?
We can quote EXW, FOB, CIF price. And you can pay us by T/T, or Western Union.
>>
