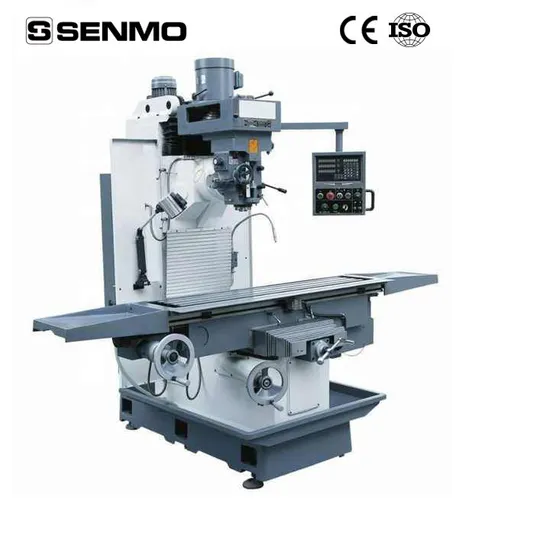

China Cheap Universal Vertical Milling Bed Type Metal Milling Machine X713

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
X713
Type
Worktable Milling Machine
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Size (Width)
14mm
Centre Distance
80mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990

Product Description

Bed-type Milling Machine

Specifications X713
Table size 1525x320mm
T slot 3
Size (Width) 14mm
Centre distance 80mm
Max. load of Table 600kg
Longitudinal travel 1050mm
Cross travel 470mm
Vertical travel 500mm
Spindle taper ISO40
Quill travel 127mm
Spindle speed /step 70-3620/10rpm
Spindle axis to column surface 450mm
Spindle nose to table surface 70-570mm
Longitudinal/cross feed X:20-1200mm/min/Variable Y:Manual
Vertical 1200/1
Longitudinal/cross rapid speed X:1200mm /min Y:Manual
Rapid Traverse vertical 1200
Main motor 3.7kw
Feed motor 0.4kw
Elevating motor for headstock 0.37kw
Coolant motor 0.04kw
Package dimension 201x190x225cm
Max.table load 600kg
Overall dimension 256.5x192x229cm
N/W 2500kg

Standard Accessories Optional Accessories
Milling chuck Digital readout system
Spindle arbor Clamping kit
Sleeve Dividing head device
Ring spanner Vice
Inner hexagon spanner ER Series Mill Chuck Sets
Drilling chuck Rotary table
Drawbar Spindle guard
Machine Worklamp 7HP Milling head
Coolant system
CE electrical cabinet
5HP Milling head
X axis inverter drive
Z axis elevating motor
