Haichen Hck 410 Ton Best Plastic Injection Molding Prices Injection Making Moulding Machine

US$55,500.00
1 sets
US$51,000.00
2+ sets

Basic Info.

Model NO.
HCK410
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Condition
New
Injection Rate
422cm3/S
Injection Rate (G/S)
422g/S
Ejector Force
120kN
Weight (Kg)
15000kg
Place of Origin
Zhejiang, China
Screw Speed (Rpm)
1-190rpm
Open Stroke(mm)
760mm
Single Gross Weight
20000.000 Kg
Screw Diameter (mm)
70mm
Injection Weight (G)
167 G
Power (Kw)
28kw
Single Package Size
820X240X300cm
Automatic
Yes
Distance Between Tie Bars
720*670mm
Transport Package
Wooden
Specification
HCK410
Trademark
Haichen
Origin
Ningbo
HS Code
8477101090

Product Description

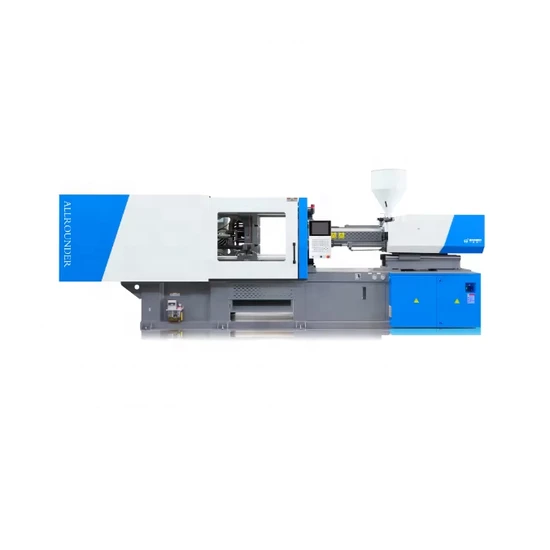

Haichen HCK 410 ton best plastic injection molding prices injection making moulding machine
K Series Energy Saving Machine
Haichen Servo energy-saving injection molding machine is designed to achieve significant energy savings by utilizing servo motor applications.
Unlike ordinary engines, the flow rate and speed of the oil pump in a servo engine can be adjusted according to the requirements, effectively reducing energy consumption.
In contrast, ordinary injection molding machines run continuously, even when the machine is not in motion, leading to constant motor rotation.
A servo injection molding machine, on the other hand, utilizes power only when necessary for different actions. Consequently, when the machine is not moving, the servo motor completely stops, resulting in energy savings.


Characteristic:No border super large screen human machine dialogue interface (optional).
The side of the table is equipped with 220V socket.The door frame of distribution box is affixed with sound insulation cotton, dustproof and waterproof.Automatic die adjusting device is accurate and convenient.




Double rod injection structure,injection more stable.

Injection cylinder and drive shaft intergrated to ensure the injection mechanism coaxiality and straightness.

Injection adopts high precision linear guide rail to reduce the load of storage stable back pressure.




We mainly produce high precise injection molding machine with clamping force range from 50t to 3000t.The products have high rigid structure and equipped with imported hydraulic and electrical elements, It also uses mixing metal screw head in order to have excellent plastifying performance and it's suitable for plastic injection molding products.

We are prefessional production base specialized in designing and manufacturing plastic injection machines and enjoy high reputation in the Plastic machinery industry.
Following the purpose of "stay honesty, never relax", We sincerely welcome friends from all over the world to come and visit.
