Textile Finishing Machine /Knit Tube Compacting Machine /Tubular Compactor

Product Description

Introduction

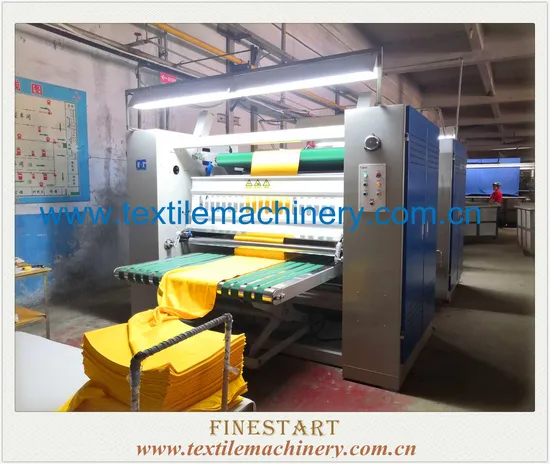

This machine is used for preshrinking and ironed tubular fabric, the configuration of magnetic suction type independent shuttle plate, thickness of 18 mm NOMEX carpet, hydraulic lifting platform,After drying the fabric directly from the machine processing, can obtain the stable size, less than 5% of the effect of shrinkage and excellent soft.
The biggest width fabric: 1500 mm
We can offer the following four different machine according to the different heat source:
Steam, electricity, heat conduction oil (internal loop),
electricity and heat conduction oil (outer loop), heat conduction oil supply
The highest temperature of steam drying cylinder is 130 ° C, the highest temperature of other machines is greater than 180 ° C.
Our machines are equipped with blankets 18 mm thick and contain NOMEX material, wear-resistant high temperature resistance, will not pollute the fabric. Standard with the drying cylinder with a diameter of 450 mm.
Magnetic suction type independent shuttle plate, easy to use, can adjust the width of the machine is running.
Hydraulic type folded cloth machine has very neatly folded cloth.
* model can provide a configuration of the drying cylinder with a diameter of 570 mm,
Steam drying cylinder, electric + heat conduction oil cylinder (outer loop), for the heat conduction oil cylinder, its production speed than the standard machine is increased by 30%.
* machine configuration electric + heat conduction oil (outer loop) drying cylinder can realize rapid freezing and rapid thawing in the process of production downtime and to boot, reduce wear? Blanket cooling process, prolong the life of the carpet.
* we can provide dual blanket preshrinking machine, when processing a narrow fabric, two cloth run together, when processing the width of the fabric, can run a cloth. The machine's efficiency by more than 50%, without any increase in workers compared with single machine.

Design Drawing
Basic Info

Model	FSYS450
Name	Tubular Fabric Sanforizer
Application	Textile-finishing(shrinkage rate:2-5%)
Suitable Fabric	Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%)

Techical Dates

Main Matching Fabric	tubular fabric of above 65% cotton content
heat source	natural gas / circulating conduct oil / steam
pre-shrinking type	20mm Nomex compacting
supporting plate type	maglev separeted shuttle
fabric outfeed type	auto precisely plaiter
Max working width of supporting plate	1450mm
Max working width of felt	1500mm
working speed	5-30m/min
drum temperature control type	up & down separatly control
drum drive type	up & down separatly drive
Max temperature of drum	electricity,conduct oil <190ºC,steam<140ºC
breadth adjustment type	manual and electromotion
capacity of machine	10kw
standard machine power supply	380V/3P/50HZ
control power supply	220V/24V
steam specification of steam box	3-6Kg/cm² saturated steam
steam comsuption of steam box	50~100 kg/h
compressed air	0.35-0.6MPa
dimension	L*W*H=6500mm*2740*2250mm
total weight	4.55T

Production Line
Other Products
