Basic Info.
Cutter Material
High-Speed Steel
Product Name
Mobile Crusher Station
The Machines Classification
Building Stone Production Line
After-Sales Service Provided
Engineers
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Provide
Transport Package
Contain
Packaging & Delivery
Package Size
4196.00cm * 2300.00cm * 1985.00cm
Package Gross Weight
5800.000kg
Product Description
Product Description

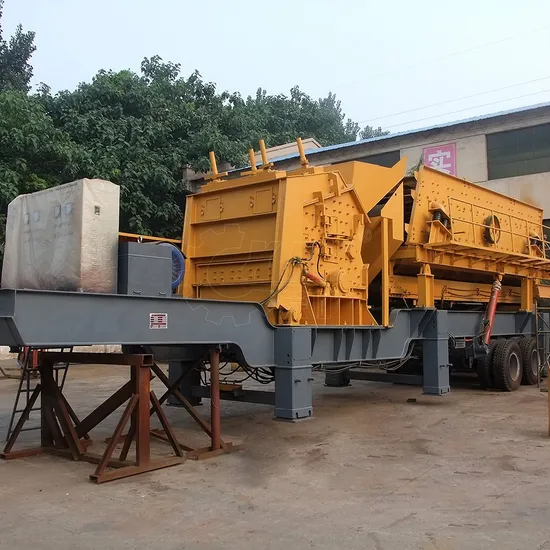

The mobile crushing station integrates feeding, crushing, screening, conveying, and other equipment. Through the combination of different models, it forms a powerful crushing and screening production line to complete the processing operations with multiple needs.
The mobile crushing station series can be equipped with different coarse crushing, medium crushing, fine crushing, and screening equipment, such as jaw crushers, impact crushers, hammer crushers, fine crushers, sand making machines, and screeners.
Detailed Photos
Product Parameters
Equipment Model | CPP200 | CPPS200 | CPP260 | CPPS260 |
Crusher Model | PFW1310 | PFW1310 | PFW1314 | PFW1314 |
Crusher Feeding Size(mm) | 1060×1200 | 1060×1200 | 1460×1200 | 1460×1200 |
Crusher Discharging Size(mm) | 20-80 | 20-80 | 30-100 | 20-100 |
Feeder Model | GZT1038 | GZT1038 | GTZ1538 | GTZ1538 |
Feeder length(mm) | 3800 | 3800 | 3800 | 3800 |
Feeder Width(mm) | 1000 | 1000 | 1500 | 1500 |
Feeding Height(mm) | 4400 | 4400 | 4500 | 4500 |
Main Belt Discharge Height(mm) | 3000 | 2800 | 3000 | 2800 |
Side Belt Dischargr Height(mm) | 1600 | 1600 | 1600 | 1600 |
Screen Model | | YK1332 | | YA1535 |
Screen Length(mm) | | 3200 | | 3500 |
Screen Width(mm) | | 1300 | | 1500 |
Capavity(t/h) | 100-200 | 100-200 | 150-250 | 150-250 |
Certifications
Packaging & Shipping Packing Detail: 1. small parts are wooden box package. 2. main engine nude packing, container, or upon customers requirement.Delivery Detail: within 20 daysPorts: Qingdao, Shanghai, Tianjin and other ports.
Company Profile
Our Advantages 1.Unit integration: The combination of mobile crushing and screening stations is reasonable. The complete set has strong performance, and the requirements for the workplace are extremely low.
2. Strong maneuverability: The whole vehicle has a compact structure and low requirements for road transportation and installation conditions. It is convenient and quick to change, enter and exit the site.
3. Energy saving and high efficiency: The mobile crushing station can directly enter the site for processing, which reduces the transportation of materials and saves the transportation cost of raw materials.
4. Flexible combination: According to different process requirements, the crushers can also be combined into coarse crushing, medium crushing, and fine crushing systems according to actual needs, which have great flexibility.
5. Cost savings: Mobile crushing stations can be quickly set up and dismantled, reducing labor costs and time required for installation. The machine adopts the latest technology, has low maintenance costs, and long life.
After Sales Service (1) Arrange technicians to guide the installation.
(2) If your machine is out of warranty, you can buy spare parts from us at the best price.
(3) Engineers can repair machines overseas.
>>
