Scott Internal Bond Test Equipment (PN-IBT)

Product Description

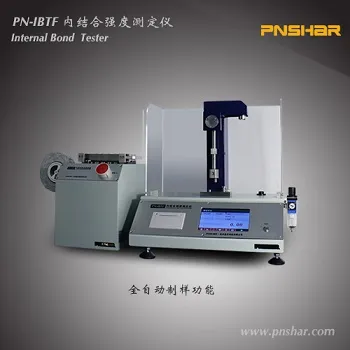

Scott Internal Bond Test equipment

Product Description This is Scott Internal Bond Test equipment.
The Scott Internal Bond Test equipment is designed to determine the internal bond strength of a variety of paper and board materials according to TAPPI T 569. The instrument design is based on a falling pendulum which creates a high speed impact on a paper specimen. The paper specimen is sandwiched between two double-coated tape substrates. The pendulum impacet measures the total energy required to delaminate the internal fibers of a specimen in a "Z" type direction into two separate piles. The system also incorporates an automatic sample preparation station which allow five specimens to be accurately prepared simultaneously.

Product Features 1) Selectable units(ft.lb/in2, J/m2.)
2) Report printout with built-in printer
3) Automatic calibration
Product Applications Newsprint, Fine paper, Liner board, Bookstock, Carton board, Medium, Coatings, Laminates.
Product Standards TAPPI T 569 and GB/T 262034.
Product Specification

ITEM	SPECIFICATION
POWER:	AC 220V 50HZ
Test angle:	90°
Results directly in:	lb-ft/in², J/M2
Ranges:	A: 20-500J/M2, B: 500~1000J/M2
Dimensions(WxDxH):	70cm×34.5cm×63cm 92KG

---
