Hard Plastic Granulator/Plastic Crusher of Recycling Machine with Ce/ PC52120

Product Description

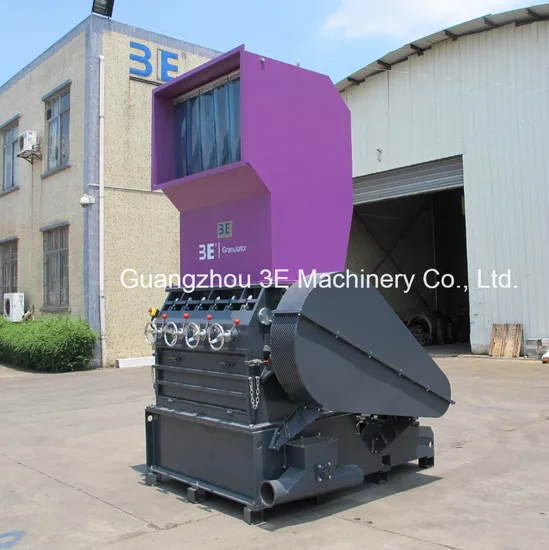

3E MACHINERY's PC52-PC80 series granulator is our conventional range of large size granulators. It's design for recycling the hard and thickness materials, such as proximate matter, tubes, large size solid materials, defectiveproducts etc.
It's heavy duty, high speed precision granulation machine designed for the rapid size reduction of various types of material in a single pass. The material is cut cleanly between the rotor and stator knives, and cut down to a homogenous regrind size determined by the screen holes on the fitted screen.
Application
Specification

Item Model	PC52100	PC52120	PC66120	PC66160	PC80160	PC80200	PC80240
Dimension L/W/H(mm)	2119×2025×2984	2070×2225×2984	2410×2320×4340	2335×2808×4337	3000×2900×4715	2735×3373×4564	2735×3580×4765
Cutting Chamber C/D(mm)	1034×705	1234×705	1234×1080	1634×1080	1634×1000	2034×1000	2034×1000
Height of discharge port E(mm)	2236	2236	3214	3214	3675	3514	3675
Rotor Diameter (mm)	φ520	φ520	φ660	φ660	φ800	φ800	φ800
Main Shaft Speed (r/min)	462	462	462	414	414	420	415
Screen Mesh (mm)	φ12	φ12	φ12	φ12	φ12	φ12	φ12
Rotor-knives (pcs)	5×2	5×2	5×2	5×2	5×2	5×2	5×2
Stator-knives (pcs)	2×2/2×3	2×2/2×3	2×2/2×3	4×2/4×3	4×2/4×3	4×2/4×3	4×2/4×3
Main Motor Power (kw)	55	75	90	132	160	200	250
Weight (kg)	4200	5300	7650	9720	11400	13600	15780

Features
Company profile
3E GROUP is an integrated company specialized in developing, manufacturing, distributing and providing recycling machinery solutions. Our main entity " Guangzhou 3E Machinery CO. Ltd" founded in 2003, has currently become focusing on "Shredding" and "Recycling industry" modern enterprise.
Technology is the core-competitiveness of 3E Group, we are active in the recycling market and keep cooperating with well-known enterprises in Europe and the USA. Meanwhile, 3E Group keeps on improving and innovating, so far, we awarded 18utility model patents and 3 invention patents.
"Efficient Economical & Environmental" is the traditional idea of 3E Group. With its own intellectual property and solid technological team, our products have been already sold to over 90 regions and countries which include the USA, Europe, Australia, Southeast Asia, Latin America, and Middle East.
Our service
1.Pre-sale support
3E Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
On-site inspection.
2. After-sale service
3E's skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a 3E technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
3E holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
3E provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
Certification
3E MACHINERY was awarded 18utility model patents and 3 invention patents.

---
