Basic Info.
Form
Single Cavity with Pneumatic Control System
Abrasive Fill-in Capacity
0.2m3
Working Pressure
0.7MPa (Max 0.8MPa)
Compressed Air Consumption
6.5m³/Min(0.7 MPa, 10mm Nozzle)
Overall (Including Sieve Screen and Cap)
1240*940*1570mm
Transport Package
Customized
Production Capacity
8000pieces/Year
Product Description

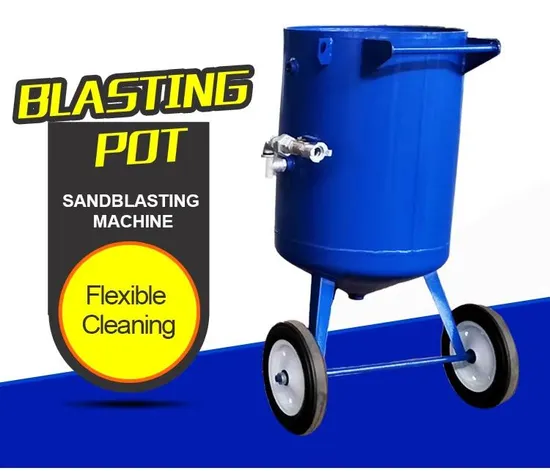

Portable 200L Pressure Sandblasting PotProduct OverviewSingle gun intermittence type Sand blasting pot:
Product introduction:
This machine adopts a pressure-feeding sand blasting pot, which uses compressed air to flow at high speed in a high-pressure tank to create a high-pressure effect. The steel grit in the high-pressure tank is sprayed out through the sand blasting hose, and then is discharged from the blasting nozzle with the compressed air flow. It is sprayed onto the surface of the work piece at high speed to achieve the purpose of sand blasting.
Product type: Single gun intermittence type
Product Application: A sand blasting pot can be used for all kinds of metal surface. For example, large industries such as shipbuilding, aircraft, wind power equipment, large oil or gas tanks, containers, locomotives, etc. And also, small industries such as steel structures or castings with complex structures will be suitable for sand blasting.
Model | Volume(L) | Outline size(mm) | Net weight (KGS) | Control type |
BP-100L | 100 | Φ474*1190 | 200 | Manual control |
BP-200L | 200 | Φ624*1375 | 250 | Manual control |
BP-500L | 500 | Φ800*1515 | 500 | Manual control |
Main Components:Blasting gunOil-water separatorSilencerCompound valveLipWheelBlasting hosePneumatic control systemBlasting Nozzle: boron carbideSize: 100L/200L/500L/700L/1000L/1500LApplication:
1. Blast cleaning: Used for blast cleaning of casting, die casting, forging, sand removal of casting, steel plate, H type steel, steel structure. 2. Shot peening: Shot peening of gear, heat treatment.3. Rust removal: Rust removal of casting, forging, steel plate, H beam, steel structure, descaling of forging.4. Sand blasting: Shot blasting of profile steel, ship plate, steel board, steel material.Packaging & Shipping
Small parts will be in plywood case, and larges parts will wrapped by plastic film, and then in container.
Company Profile
Shandong Kaitai Shot Blasting Machnery Share Co., Ltd: 1. Dedicated in blasting industry for over 20 years, which is a global professional and leading manufacturer of intelligent air & wheel blasting technology solutions for metal surface treatment industry.
2. Have 1800 employees and occupied an area of 600,000 square meters, with 17 sales branches and 65 offices in China,and 12 branches in worldwide.
3. Have overseas service team: Airblast & Sybrandy in Netherlands, Australia Pumpline, Finland Blastman Robotics.
4. Provide one-stop service of metal surface industry, including shot blasting machine, sand blasting machine, air blower, blasting material, etc.
5. Have over 100,000 customers all over the world.Our Exhibition:
We will participate professional exhibitions worldwide.Certifications
We have won the AEO certificate, and all products have passed CE, ISO9001 certificates, etc.Our Advantages
FAQQ: What's volume blasting pot do you supply, pls?A: We offer 100L, 200L, 500L, 700L, 1000L, 1500L, etc.Q: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.
Q: How to install the machine?
A: We will arrange 1~2 engineers to your factory to guide installation and assembly.
Q: Do you sell steel shot or steel grit which can be used in shot blasting machine?
A: We have four production lines for steel shot and steel grit production, one workshop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.
Q: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.
Q: The address of your company?
A: Our address is: Qingyang, Zouping country, Binzhou city, Shandong province, China. P.C.: 256217.
Q: What's the nearest airport around your company?
A: The Jinan International Airport is the nearest around our company. If you want to come to visit out plants, we can pick you up there. BTW, the nearest railway station for fast train is Jinan West Station. We can also pick you up from the station. Sincerely hope we can have further discussion or cooperation, welcome get in touch with us without hesitation. Kaitai is willing to make friends with you from all over the world.
>>
