Basic Info.
Type
CNC Milling Machining Center
Milling Cutter Structure
All
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Guideway
Taiwan Linear Guideway
X/Y/Z Axis Travel
400/350/400mm
Transport Package
Wooden Case
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
239.00cm * 225.00cm * 226.00cm
Package Gross Weight
2600.000kg
Product Description

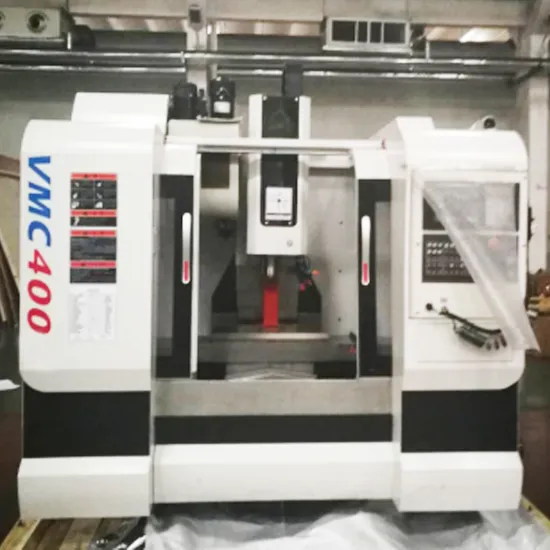

VMC400E Fully automatic good quality center CNC vertical metal milling machine
Items | Unit | VMC400E |
Table size | mm | 600*350 |
T slot (No. x distance x width) | no | 3x120x14 |
Max. load of worktable | kg | 100 |
X/Y/Z-axis travel | mm | 400/350/400 |
Spindle nose to table surface | mm | 60-460 |
Spindle taper | - | BT40 |
Speed Range | rpm | 40-8000 |
Spindle motor power | kw | 5.5 servo |
Cuttiing feed X/Y/Z | mm / min | 2-10000 |
Rapid feed X/Y/Z | m / min | 30/30/24 |
Tool magazine capacity | pcs | 16 |
Tool magazine type | - | Umbrella type |
Max. tool diameter (full) | mm | 8 |
Max. tool length | mm | 80/130 |
Max. tool weight | kg | 300 |
Tool changing time (tip to tip) | s | 3/7 |
Positioning accuracy | mm | ±0.005/300JIS |
Repeat positioning accuracy | mm | ±0.003 JIS |
Overall dimensions(LxWxH) | mm | 3020*1950*2380 |
Packing size | mm | 2390*2250*2260 |
N.W./G.W. | kg | 2400/2600 |
Standard accessories:
GSK CNC controller
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm)
X,Y,Z Taiwan linear guide ways
16 Tools umbrella type tool magazine
Taiwan high precision ball screws
spindle blowing chip removal system
spindle front seal
Germany FAG bearings
Auto centralized lubrication system
two water cooling,
one air cooling,
electrical hand wheel (MPG),
working lamp
alarm light,
rigid tapping
air gun
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
