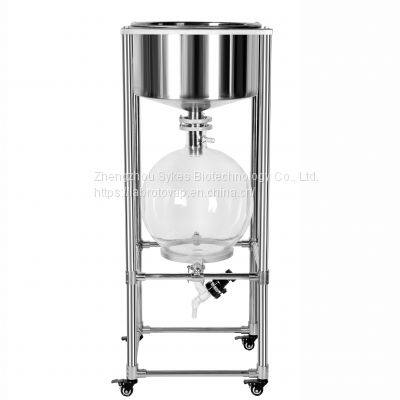

Industrial Solid Liquid Separation 20Liter Stainless Steel Funnel Vacuum Suction Filter
Brief Introduction
Vacuum suction filter is also know as vacuum filter, according to the actual needs of the majority of bio pharmaceutical development companies, it is the derivative product on the basis of the existing single-layer glass reactor, mainly used for solid-liquid separation products. It can also be used for reaction at room temperature. With superior performance, it received consistent favourable comment from experts and professor of Chinese Academy of Sciences and the users of new drug research and development. It acquires wide use at present .
Features
1. The 3.3 high borosilicate glass suction flask has excellent chemical and physical properties
2. Stainless steel buchner funnel has excellent physical and chemical properties.
3. PTFE Zero dead space draining valve can be disassembled. It is convenient to remove the solid materials.
4. The whole machine has perfect sealing performance, under static state negative pressure can reach 0.095MPa.
5. The structure of the whole machine is scientific, visual features, practical and innovative.
6. Equipped with lockable casters.
Structure
Technical Data
Model
VF-10
VF-20
VF-30
VF-50
Funnel capacity
10L
20L
30L
50L
Funnel type
Stainless Steel Buchner funnel ( SUS201 Standard; SUS304; SUS316 Optional )
Filter bottle capacity
10L
20L
30L
50L
Filter bottle type
Spherical
Glass part material
High borosilicate glass 3.3
Filter bottle inlet( mm )
95
95
95
95
Filter bottle outlet( mm )
50
50
50
50
Size of filter bottle ( mm )
Diameter 297
Diameter 370
Diameter 404
Diameter 460
Funnel size( mm )
300 x 200
350 x 220
400 x 230
500 x 280
Sealing type
Silicone gasket sealing
Draining valve
Glass and PTFE valve combined sealing
Dimension of complete machine ( mm )
400 x 400 x 1200
500 x 500 x 1300
500 x 500 x 1400
600 x 600 x 1500
