High Pressure Metal Hose Braiding Machine

US$10,000.00-15,000.00 1 set (MOQ)

Basic Info.

Model NO.
CFL
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Name
Steel Wire Braiding Machine
No. of Carrier
48
Braiding ID of The Hose
30-75mm
Rotation Speed of The Carrier
7.25r/Min
Braiding Angle
54°44′′
Pitch Distance
66-166mm
Pulling Speed
29-72m/H
Motor Power
Y132m1-6 7.5kw
Material
SS304,321,316L
Wire Diameter
0.3-0.8mm
Transport Package
Seaworthy Package
Specification
CE / ROHS / SGS
Trademark
HLT
Origin
China
HS Code
844790900
Production Capacity
15 Sets Per Year

Product Description

48-carrier wire braiding machine Product description of wire braiding machine
* Braiding ID/OD of the hose: 30-75mm
* Rotation speed of the carrier:7.25r/min.
* Braiding angle:54°44″
* Pitch distance:66-166mm
* Pulling speed:29-72m/h
* No.of carriers:48 carriers
* Motor power:Y132M1-6 7.5KW
Technical data of single decker wire braiding machine
Wire Braiding Machine
Type No. Braid ID
(mm)
rotation speed of spindle(r/min) braiding angle Pitch(mm) pulling speed
(m/h)
no.of carriers Motor power(KW)
BG-16 4-10 24.8 54°44' 9-22 13-33 16 Y132M1-6 4.0KW
BG-20 6--13 19.8 54°44' 13-29 15-34.5 20 Y132M1-6 4.0KW
BG-24 10--31 14.25 54°44' 22--69 21--66 24 Y132M1-6 4.0KW
BG-36 15--45 10 54°44' 33--100 22--66 36 Y132M1-6 5.5KW
BG-48 30--75 7.25 54°44' 66--166 29--72 48 Y132M1-6 7.5KW
BG-64 51--110 4.56 54°44' 67--240 18.6--102 64 Y160L-6 11KW
BG-72 80--150 4.25 54°44' 170--330 44--83 72 Y160L-6 11KW
BG-96 150--400 2.75 54°44' 240--750 50--120 96 Y160L-6 11KW

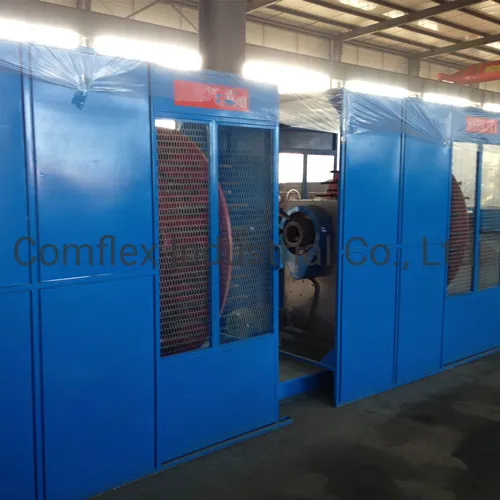

Product showing 96-carrier single decker wire braiding machine 48-carrier single decker wire braiding machin 24-carrier double decker steel wire braiding machine
Related products Wire braided hose
Wire mesh
FAQ for steel wire braiding machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
