Welcome to visit

Automatic Container Mixer for Powder Coating Manufacturing Production Hot Sale

US$2,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TOPSUN
Application
Powder, Powder
Application Area
Chemical
Certification
CE, ISO, Atex, TUV
Condition
New
Mixing Drum Shape
Conical
Stirring Type
Spiral
Warranty
One Year
Working
Shear Mixer
Volume
150-2000L
Output
70-1000kg/Tank
Mixing Time
0-10min
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Pallet, Case
Trademark
TOPSUN
Origin
Yantai, China
HS Code
8474
Production Capacity
10 PCS/Month

Product Description

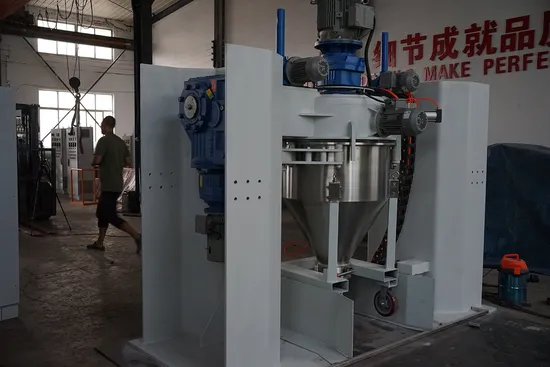

Automatic Container Mixer
Automatic container mixer is working with continuous material trolleys, the container fills the materials and lifted up and connnected tightly with mixing head automatically. The mixing head tilts together with the containers, and then obtain the homogeneous mixing result, after finishing mixing as per setting time, and return to original position, the whole process will be controlled by PLC
Main Features:
Several detachable containers for circular operation
High efficiency
Adopting PLC to realize automation
Homogenized mixture
No curing granule
Convenient for cleaning and maintenance
Safe and relaiable operation
Technical Datas:
Model Volume (L) Output (kg/tank) Mixing Motor (kw) Overturing Motor (kw) Crushing Motor (kw) Mixing Time (min) Control Mode Overall Dimensions
FHJ-150 150 70 5.5 0.37 2.2 0-10 PLC 2150*1100*2300
FHJ-300 300 150 15 3 2.2 0-10 PLC 2150*1100*2300
FHJ-600 600 300 22 4 4 0-10 PLC 2650*1250*2700
FHJ-1000 1000 500 30 4 4 0-10 PLC 2900*1550*3100
FHJ-2000 2000 1000 45 5.5 5.5 0-10 PLC 3500*2350*3650

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
