US$50,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Cooling
Grinding Equipment Type
N/a
Applicable Materials Shape
Powder
Product Name

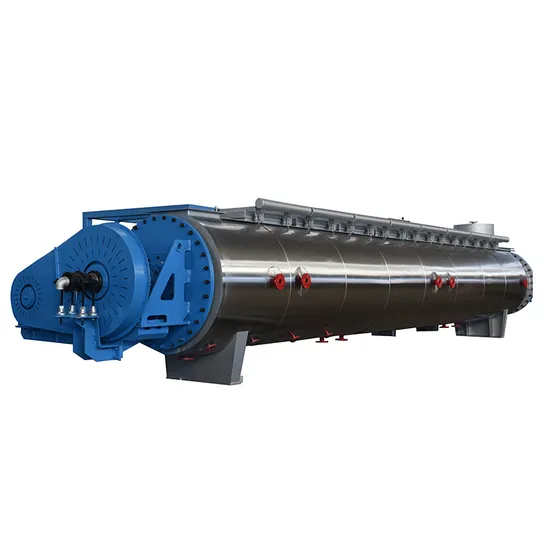

Poultry Waste Rendering Plant- Complete Unit
Raw Material
Dead/Diseased Animals
Final Products
Animal Bone and Meat Meal
Application Fields
Slaughterhouse, Farm, Animal Feed Factory
Material
Durable Carbon Steel/Stainless Steel
Operation
PLC+Touch Screen
Voltage
380V50Hz/220V60Hz/Customized
After Warranty Service
Online Support
Transport Package
Standard Packing or Customer Demand
Specification
Customer demand
Production Capacity
10 Sets/Month
Product Description
Equipment classification: Steam type drying treatment machine: inlet the high temperature and high pressure steam into the jacket, use this as the heating method, high efficiency and energy-saving. Oilfired drying treatment machine: Use the kerosene as heating medium, heating the transfer oil in the jacket, this type is clean, environmental and convenient, boiler not needed. Electric heating type drying treatment machine: Use electric heating as heating method, heating the transfer oil in the jacket, this type is high automation and convenient, boiler not needed. Process introduce
1, raw materials (dead animals) comes into play after disinfection, into the automatic bin, closed continuous conveying to the crusher, the negative pressure drainage the stench gas. 2, raw material crushing: raw material after broken into 20-30 mm block, the hermetic screw conveyor machineswere transported into the system after the sewage cleaning equipment, there are negative pressure drainage into the machine, do not produce secondary pollution. 3, high temperature system: the dry process system, and the total consumption of time is short, 120 min.Processing center temperature 140 ÂșC or higher pressure acuity 0.35 MPa (absolute pressure), the holding 30 to 40 minutes, discharge way to discharge under pressure to automatically send material to squeeze on the buffer tank, to press for the use of material automatically. 4, press: the sterilization curing materials are squeezing degreasing, separation of oilwater mixture, reduce the solid content of moisture and fat content, oil can be used as biological diesel oil and chemical oil raw material, the protein secondary water into the dryer dry recovery. 5, dryer, dry slag press cake, make the moisture content of 10% or less, so that the packing storage, can be used as organic fertilizer. 6, cooling: materials for drying after cooling. 7, exhaust: machine, dryer to discharge waste gas, through indirect condensation, drug spray filter processing standards. Technical Specifications
Technical specification | Unit | Type |
BC5000 | BC6500 | BC8500 | BC10000 | BC16000 |
Dimension A | mm | 5450 | 7100 | 7425 | 8400 | 9000 |
B | mm | 2070 | 2070 | 2305 | 2035 | 2500 |
C | mm | 1600 | 1600 | 1775 | 1775 | 2100 |
Design pressure Jacket and rotor | Bar | 10 | 10 | 10 | 10 | 10 |
Design pressure cooker | Bar | 5 | 5 | 5 | 5 | 5 |
Heating surface | m2 | 27 | 35 | 41 | 49 | 63 |
Power | Kw | 37 | 45 | 55 | 49 | 63 |
Shipping weight | Kg | 12000 | 13500 | 19000 | 22000 | 36000 |
Cooker type | Capaicty(kg/batch) |
Mixed meat offal, bones | Raw blood | Wet feathers | Mixed poultry offal |
XBC5000 | 3000 | 2000 | 2700 | 3000 |
XBC6500 | 4000 | 2500 | 3500 | 4000 |
XBC8500 | 5000 | 3400 | 4600 | 5000 |
XBC10000 | 6000 | 4000 | 5400 | 6000 |
XBC16000 | 10000 | 7000 | 9000 | 10000 |
Advantages The animal waste rendering plant is to handle all the dead animal bodies through effective sterilization, high temperature and high pressure by way of high temperature drying.The process will dry the object, and then grind the object by the shredder so as to achieve the waste recycling utilization efficiency to complete. Application
End products
Packing and shipping Our company supports sea and land transportation.We will provide you with high quality service. Company profile Our company is a well-known supplier of complete sets of harmless treatment at home and abroad. The company has the manufacturing qualification of pressure (Certificate No.TS2237474-2020). It has more than 20 new patents, 2 invention patents and strong technical force.
Our company also produces food processing machine and pressure vessel,inculding Sterilization autoclave,Jacketed pot,Vacuum cooling machine,Vulcanization tank,Autoclave,wood processing machine etc. FAQ Q1. Are you a manufacturer or a trading company? A: We are a professional manufacturer of food frying machine. We have own factory and R&D department. Having CE & ISO certificate..Q2. What is your payment terms? A: Strongly recommend to use ******'s Trade Assurance. T/T :30% prepayment,70% before delivery. Q3. Do you offer guarantee for the products? A: Yes, we offer 1 years warranty to our products.Q4. What about the lead time? A: Regular products:20-30 working days Customizable products:30-40 working days.Q5. What after-services do you provide? A: Send engineers for installation, trial running and training workers at customer's site. Handling the problems occurred during use. Supply spare and wearing parts on discount. Help customers to solve any other problems .
