US$20,000.00-25,000.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Application
Plastic Bottle,Plastic Product,Plastic Toy
Suitable Material
HDPE,LDPE,PP,PE,PC,PVC ,PETG,PS
Delivery Time
60 Days After Payment
Mould
One/Two/Three/Four/Five/Six Cavity
Station
Single Station or Double Station
Transport Package
Wooden Case
Origin
Jiangsu, Zhangjiagang
Production Capacity
200 Sets/Year
Product Description

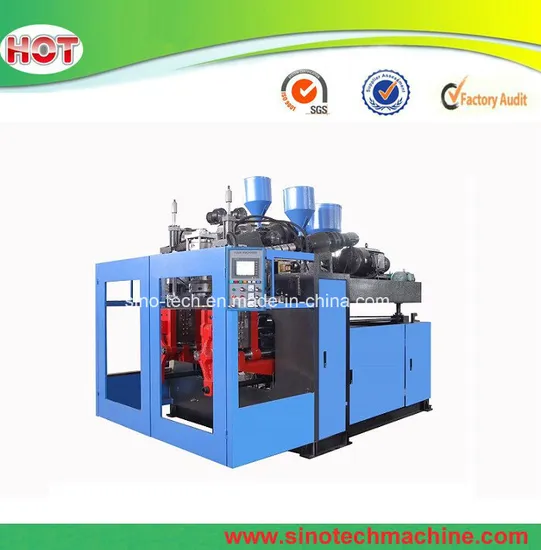

2L Plastic Bottle Blowing Machinery HDPE Bottle Automatic Blow Molding Machine
Detailed Description
1. Electronic control system: Japanese mitsubishi PLC computer and human interface (Chinese or English) control, touch operation screen operation.
All process Settings, changes, retrieval, monitoring, fault diagnosis and other functions are implemented on the touch screen without point contact working principle and components are durable.
2. Hydraulic system: proportional pressure control, equipped with imported famous hydraulic components, stable and reliable.
3. Plasticized system: effectively plasticized the mixing screw to ensure that plastic is plasticized fully and evenly.
4. Speed regulating system: variable frequency speed control 10 alloy steel hard tooth surface reduction box, speed adjustment, low noise, long sealing.
5. Opening and closing mode and moving mode system: large beam arm, three-point and center locking die mechanism to ensure long-term use.
The locking force is balanced and not deformed, and adopts the translation mechanism (ball guide rail). High precision, little resistance and fast speed.
6. Blow pin rack: the integral Angle ruler type blow needle rack, stable and unmoved, ensure that the incisions are smooth.
Technical Parameter
| ST-2L | STII-2L |
Max. Product Volume(L) | 2 | 2 |
Station | Single | Double |
Dry cycle (PC/H) | 900 | 900*2 |
Screw Diameter (MM) | 50 | 60 |
Screw L/D Ratio (L/D) | 25 | 25 |
Screw Drive Power (KW) | 11 | 15 |
Screw Heating Power(KW) | 6 | 9.7 |
No.of heating zone(Srew) | 3 | 3 |
Output of HDPE(kg/h) | 50 | 60 |
Hydraulic pump driving power (KW) | 5.5 | 5.5 |
Clamping force(KN) | 37 | 37 |
Platen distance (MM) | 138~368 | 138~368 |
Max. Size of Mold(W*H)(mm) | 310*320 | 310*320 |
Central Distance Of Bi-head(mm) | 130 | 130 |
Max.Die diameter(mm) | 72 | 72 |
No. of heating zone(Zone) | 5 | 5 |
Heating power(KW) | 7 | 7 |
Blowing pressure(Mpa) | 0.6 | 0.6 |
Air consumption(m³/MIN) | 0.4 | 0.4 |
Cooling water pressure(Mpa) | 0.2~0.3 | 0.2~0..3 |
water consumption(L/MIN) | 35 | 35 |
Size of machine(L*W*H)(m) | 2.78*1.55*2.35 | 3.2*2.12*2.55 |
Weight of machine(TON) | 3.3 | 3.9 |
Detail Show
Production workshop
Packing & Shipping
After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
