Basic Info.
Transport Package
Plastic Box
Production Capacity
10000
Product Description
5220 HVOF SPRAY GUN Introduction
The HVOF 5220 gun is designed for the liquid fuel supersonic thermal spraying process and is considered the benchmark and classic equipment in the supersonic thermal spraying industry. This gun model is assembled with rugged parts to ensure durable and low-frequency maintenance quality. Different barrel options, quick and reliable replacement.
Customer Value Quality Guarantee; Super cost effective; Experienced industry background; Professional technical consultation; In stock with short delivery time. Technical Parameters
Dimension(mm) | 419*85*159 |
Weight(Kg) | 5 |
Oxygen pressure(Bar) | 15-17 |
Carrier gas pressure (Bar) | 1.5 |
Kerosene pressure (Bar) | 12-13 |
Cooling water pressure(Bar) | 9-11 |
5220 gun wearing parts
OEM No. | Wearing parts Name |
600460 | 4 inch barrel |
600461 | 6 inch barrel |
600462 | 8 inch barrel |
450922 | Intermediate connector |
450924 | Chamber |

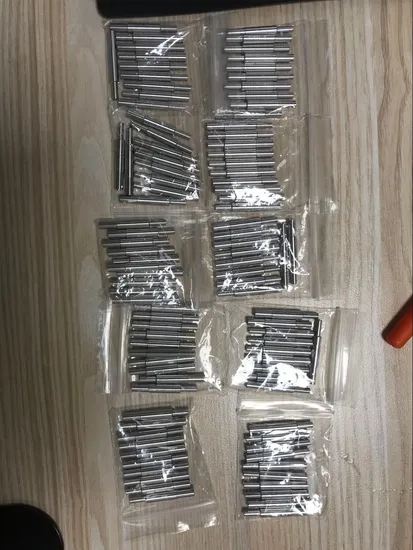

450925 | Powder injection needle |
600392 | Coaxial stabilizer Assembly for 5220 |
450861 | Coaxial stabilizer without no piping |
600460 | AP5000/8000 Atomizer (Kerosene needle) |
450864 | AP4inch barrel jacket |
450863 | AP6inch barrel jacket |
210042 | Nylon buckles for Powder injection needle |
220021 | TUBING, NYLON, 1/4" OD |
210286 | Powder feed tube tee T port |
600628 | Combustion chamber pressure pipe |
450934 | Combustion chamber pressure pipe fitting |
620180 | Powder Port Fitting, for 5220 |
620209 | Interface accessories for powder feeding parts module |
600408 | Spark Plug Assembly, for 5220 |
450879 | Gun Housing |
600401 | 4inch Pressure Tube Assembly |
600402 | 6inch Pressure Tube Assembly |
450869 | 4inch Return pipe |
450870 | 6inch Return pipe |
The 4inch/6inch and 8inch barrels are the most common for HVOF equipment.
Application, powder type, and spray parameters determine barrel selection.
The coaxial stabilizer assembly (P/N 600392) is the most critical part of the 5220 Gun. Fuel is atomized into fine droplets by the oxygen in
the coaxial stabilizer. VULCAN's coaxial stabilizer is manufactured, assembled, and tested at our facility. The tests are performed on a calibrated AP-5000® system to internal
specifications.
The coaxial stabilizer assembly includes the main stabilizer body, adaptors,
fittings, check valves, coaxial tube assembly and spark plug assembly.
Test requirements on the coaxial stabilizer assembly include a check
and pass process at given flows on a calibrated console:
Check: Pass:
• Pop-Back • Pop-Back
• O2 Back Pressure • Pressure Valves Remain Constant
• Combustion Back Pressure • Stable Flame
• Fuel Pressure • Smooth, Consistent starts
The combustion pressure heat tube assembly (P/N 600464) is a component for the 5220 gun connecting the combustion line to the coaxial stabilizer. If extreme heat passes through the stabilizer into the combustion line, this assembly reduces the temperature, prolonging the life
of other components. VULCAN's combustion pressure heat tube assembly is manufactured to the latest revision level avail able exclusively from VULCAN.
>>
