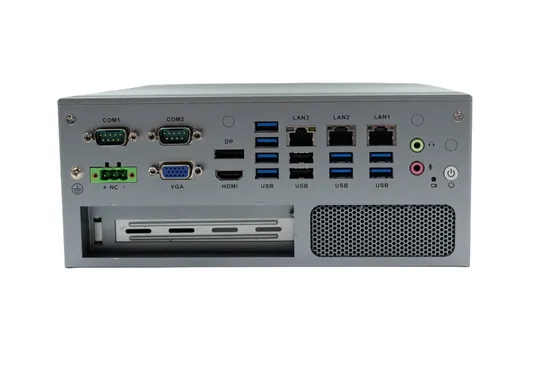

Intel Core I5 Guangdong Personal Industrial PC Socket LGA 1151 Video Surveillance Systems

US$500.00
50-99 Pieces
US$490.00
100-199 Pieces
US$480.00
200+ Pieces

Basic Info.

Model NO.
OTF-8823
CPU Type
I3,I5,I7 6-9 Th Gen Processor LGA1151
Hard Disk Rack Type
2.5
Operating Temperature
0ºC-60ºC
RAM
4gddr4 up to 64GB
Storage Capacity
128g,256g,512g,1t SSD
System Expansion Slot
PCIe x1
Type
IPC
Ethernet
Gbe LAN1-3: Intel® Ethernet Controller I211-at
HDMI Port
1X HDMI 1.4, Max Resolution 4096X2304@24Hz
Dp Port
1X Dp 1.2, Max Resolution 4096X2304@60Hz
VGA Port
1X VGA, Max Resolution 1920X1200@60Hz
Audio
Line-out, Mic-in
Serial Port
4X RS-232,2X RS-485
USB Port
10 (8X USB 3.0, 2X USB 2.0)
Gpio
16bit Gpio
OS
Windows/Linux
Operating Temp
0 ~ 60° C with 0.7m/S Air Flow
Storage Temp
-40 ~ 80 °c (-40~176 °f)
Relative Humidity
95% @ 40 °c (Non-Condensing)
Origin
Shenzhen
HS Code
8471414000

Product Description

Product series: CPU: PCIE:
OTF-8803H-B1 Core 4 generation I3/15/17 Does not support extension
OTF-8803H-E1 Core 4 generation I3/15/17 1 x PCleX16
OTF-8803H-E2 Core 4 generation I3/15/17 1 x PCleX16,1 x PCleX4
OTF-8803H-E4 Core 4 generation I3/15/17 1 x PCleX16,3 x PCleX4(PCleX1 in)
OTF-8823H-B1 Core 6th/7th/8th/9th generation I3/15/17 processors Does not support extension
OTF-8823H-E1 Core 6th/7th/8th/9th generation I3/15/17 processors 1 x PCleX16
OTF-8823H-E2 Core 6th/7th/8th/9th generation I3/15/17 processors 1 x PCleX16,1 x PCleX4
OTF-8823H-E4 Core 6th/7th/8th/9th generation I3/15/17 processors 1 x PCleX16,3 x PCleX4(PCleX1 in)
OTF-8823H-E4L Core 6th/7th/8th/9th generation I3/15/17 processors 1 x PCleX16(Supports full height expansion cards),
3 x PCleX4(PCleX1 in)
Specifications
CPU Intel 6th/7th/8th/9th Gen Processors (≤ 45W)
Chipset Intel Q170 Chipset
Type Dual Channel SO-DIMM DDR4
Capacity 64GB
Graphics Intel HD Graphics based on CPU
Interface 10/100/1000Mbps
Ethernet Intel I211
Connector 3 x RJ45
M.2 1x M.2 for 2280 SSD SATA
SATA 2x SATA 2.5 inches HDD/SSD
HDMI 1 x HDMI
DP 1 x DP
VGA 1 x VGA
LINE OUT 1 x LINE OUT
MIC IN 1 x MIC IN
USB3.0 8x USB3.1 + (1 x USB3.1 Dongle OnBoard )
USB2.0 2 x USB2.0
COM 4 x RS232 (DB9);2 x RS485 (phoenix)
GPIO 16 bit GPIO
Wire Switch 1 x Wire Switch
M.2 1 x M.2 Key_B for 2242 4G/5G
M.2 1 x M.2 Key_E for 2230 Wi-Fi
USB2.0 2 x USB2.0
SIM 1 x SIM
Connector DC 16~36V (3-Pin phoenix)
Power Type Single 16~36V DC power input
Size (W x H x D) 220mm x 79mm x 227.5mm
Weight 4.2KG
Operating Temp -10ºC~50ºC
Storage Temp -40ºC~85ºC
Operating System Windows 7 (6th Gen only), Windows 8.1/10, Linux
CPU Processor Base Frequency Total Cores Total Threads
I3 6100T 3.20 GHz
I5 6500T 2.50 GHz 4 4
I7 6700T 2.80 GHz 4 8
I7 7700T 2.90 GHz 4 8
I5 9500T 2.20 GHz 6 6
I7 9700T 2.00 GHz 8 8
Product size chart
