Zoomlion 90 Ton Telescopic Crawler Crane Zct900V542 with Best Pirce in Russia

Product Description

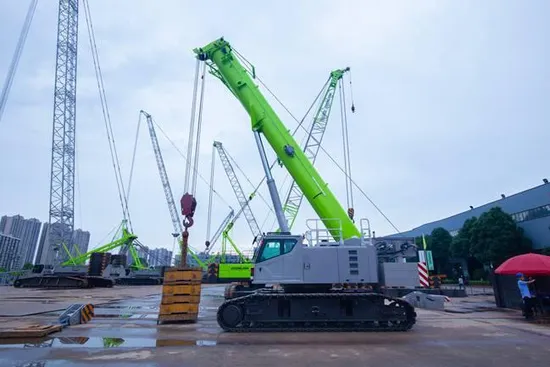

Chinese Zoomlion ZCT900V532 90 Ton Telescopic Boom Mobile Crawler Crane
Product Description
ZCT900, which integrates Zoomlion's decades'experience in designing and manufacturing mobile cranes with advanced technologies, is a new generation of high-performance product developed to meet oversea market demands. Its performances such as lifting height, main boom length, working speed and lifting capacity, etc., have achieved advanced international level.
Benefits & features
a.Stronger lifting capacity
With 47m main boom with U-shape cross section, the lifting capacity of the crane wins its first position among the competing crawler cranes of the same tonnage level by a margin of 10%. It has the largest single rope pull force for this tonnage level in the industry, and better adaptability to operating modes of basic constructions.
b.Higher reliability
Key components such as engines, pumps and motors are all first-class Chinese or international brands, ensuring their stable and reliable performance. The complete vehicle has passed strict reliability tests and validations.
c.Wider applicability
Higher capability of the travelling system achieves a maximum gradeability of 45%. The crane is able to work in harsh working sites with soft or muddy ground.
Better adaptability to complex lifting environment thanks to its integration of flexible length change of the telescopic boom of a mobile crane and the lift-and-carry capability of a crawler crane.
d.More intelligent controls
Adoption of the unique intelligent flow control technology achieves more stable joystick control and more accurate movement control through automatic distribution of hydraulic oil flows based on input from sensors and controllers.
e.More convenient transportation
The complete vehicle can be transported in trucks after its counterweight is removed, and the transportation dimension conforms to the 3m width requirement. The dismantling process can be highly efficient, thanks to a handling mechanism which can load and unload both the counterweight and crawler carrier automatically.

Model			ZCT900V532
Item		Unit	Value	Remarks
Max. lifting capacity		t	90
Max. lifting moment		t×m	310
Main boom length		m	12.1-47
Jib length		m	8.5-14.2
Max. length of main boom with fixed jib		m	47+14.2
Main boom angle		°	-2-80
Jib installation offset		°	0, 15, 30
Max. single rope speed of the main hoisting winch		m/min	140	Unloaded, the 4th drum layer
Max. single rope speed of the auxiliary hoisting winch.		m/min	140	Unloaded, the 4th drum layer
Slewing speed		rpm	0-1.6
Traveling speed		km/h	0-2.5
Max. gradeability		%	45
Ground pressure		MPa	0.09
Deadweight of the complete vehicle		t	85.6
Overall dimensions (L × W × H)		mm	14630×5100×3250
Engine	Model		Weichai WP7	Optional: Cum.mins QSL9
	Rated power / rotational speed	kW/rpm	199/2000	209/2000
	Max. output torque / rotational speed	Nm/rpm	1200/1500	1424/1500
	Exhaust emission	/	Chinese National Stage 3 for non-road vehicles	Tier 3
