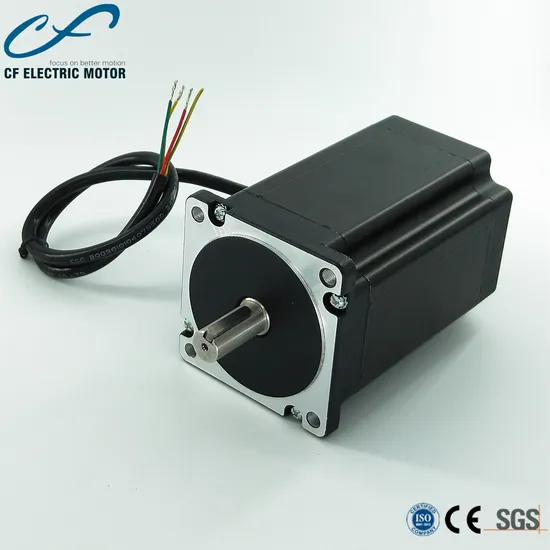

3 Phase 5nm 86bygh350b-03 Hybrid Step/Stepping/ Stepper Motor

Product Description

86BYGH350 Series Hybrid Stepping Motor
General Specifications:
Step Angle ------------------------------------------------------------------------------------------------------1.2°/0.6° (full step)
Step Angle Accuracy ------------------------------------------------------------------------------------±3.5%(0.72°, no load)
Resistance Accuracy ---------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy ---------------------------------------------------------------------------------------------------------±20%
Temperature Rise ------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range --------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance --------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength -----------------------------------------------------------------------------750VAC 50Hz 1mA 1 Minute
Insulation Class -------------------------------------------------------------------------------------------------B Class (130ºC)
Shaft Axial Play--------------------------------------------------------------------------------------0.08mm Max (450g Load)
Shaft Radial Play------------------------------------------------------------------------------------0.02mm Max (450g Load)
Max. radial force--------------------------------------------------------------------------------220N (20mm from the flange)
Max. axial force------------------------------------------------------------------------------------------------------------------60N
Rotation----------------------------------------------------------------------------------------------------CW (See from flange)
Electrical Specifications:

Model	Model	Phases	Motor Length	Holding torque	Voltage	Current	Rotor Inertia	Lead Wire	Weight
60 S.A.	73 S.A.		mm	N.m	VDC	A	Kg.cm2		Kg
86BYGH350A-01	86BYGH350A-01-01	3	70	2.5	80-325	1.75	1.1	6	1.65
86BYGH350A-02	86BYGH350A-02-01	3	70	2.5	24-40	5.8	1.1	6	1.65
86BYGH350A-03	86BYGH350A-02-01	3	70	2.5	24-110	3	1.1	6	1.65
86BYGH350B-01	86BYGH350B-01-01	3	101	5.0	80-325	2	2.2	6	3.3
86BYGH350B-02	86BYGH350B-02-01	3	101	5.0	24-40	5.8	2.2	6	3.3
86BYGH350B-03	86BYGH350B-03-01	3	101	5.0	24-110	3	2.2	6	3.3
86BYGH350C-01	86BYGH350C-01-01	3	130	7.5	80-325	2.25	3.3	6	3.8
86BYGH350C-02	86BYGH350C-02-01	3	130	7.5	24-40	5.8	3.3	6	3.8
86BYGH350D-01	86BYGH350D-01-01	3	162.5	10.0	80-325	2.4	4.4	6	5.5
86BYGH350C-03	86BYGH350C-03-01	3	130	7.5	24-110	3	3.3	6	3.8
86BYGH350D-02	86BYGH350D-02-01	3	162.5	10.0	24-40	5.8	4.4	6	5.5
86BYGH350D-03	86BYGH350D-03-01	3	162.5	10.0	24-110	3	4.4	6	5.5

*Products can be customized as your required specifications. Kindly contact us if you have inquiry.
Dimensions:
Pull-out Torque-pulse curve:Shaft types:
Suitable Stepper Motor Driver: 3-Phase Digital Stepping Drive
CF30522M
Overview
CF30522M is a 3-phase hybrid stepping motor drive based on DSP control. It is a new generation of digital stepping motor drive which combines advanced DSP control chip and 3-phase inverter drive module. It uses a similar servo control circuit, which can make the motor running smoothly, almost no vibration and noise. When the motor is at high speed, its torque is much higher than 2-phase and 5-phase hybrid stepping motors. The product is widely used in engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high resolution, large and medium-sized CNC equipment.
Key Features110 to 220VAC supply voltageSuitable for 3-phase, 3 and 6 leads hybrid stepping motors, with NEMA size23 to 42Output current selectable from 1.2~5.0ACurrent reduction by 50% automatically, when motor standstill mode is enabledOptical isolation signal input / outputPositioning accuracy is up to 12,000 steps / turn Over Voltage, Coil to Coil and Coil to ground short circuit protectionPulse Input Frequency 0~200KHzThe phase memory function (Note: When the drive stops for more than 3 seconds, it will automatically memorize the motor phase then re-energizes. When the WF signal goes from low to high, the drive will automatically recover the motor phase).
Application:
Packing:Hard cardboard or wooden box with foam inside.
Shipping:Normally the delivery time is within 10 days according to customer's choice or ship by the best express company to the destination.
Delivery:1.with over 17 years of manufacturing experience, any type of customizing is available.2.with perfect service system, we can provide you with first class pre and after sale service.3.we have enough storage of each type of products, with first class packaging and shipping, make sure accurate delivery.4.professional sales consultants give you all answers about our proucts.
Certificate: FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.

---
