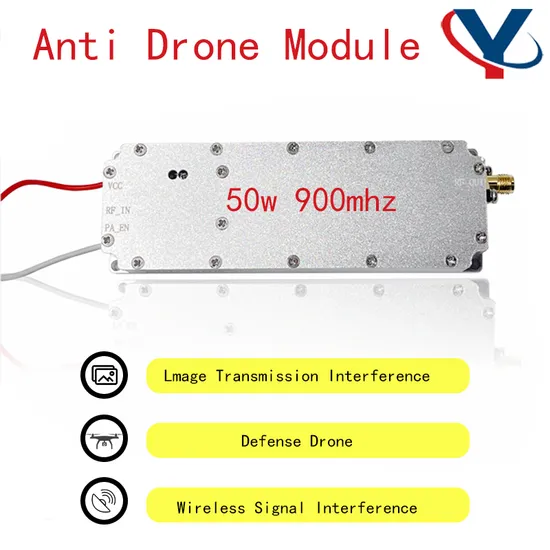

Wireless Signal Defense 50W 900MHz Fpv RF Amplifier Anti Drone Interference Module

Product Description

Power Amplifier Customized Frequency 900MHZ 50W RF Module Anti Drone Module
At present, the vigorous development of low altitude economy both domestically and internationally has led to more frequent use of unmanned aerial vehicle (UAV) equipment, which has begun to play a role in various fields of society. At the same time, the hazards caused by various UAVs have also frequently emerged. Maintaining the information security and personal safety of oneself and enterprises has become an indispensable part. Our company's products use wireless electromagnetic wave interference for protection, and the interference and protection effects are far and stable. We have our own R&D team to update equipment, as well as our own production department to collaborate on production, packaging, and shipping. The two work together to help develop better interference equipment services for everyone.
100W Interference Power Amplifier Technical Data Sheet Radio Frequency Index

Test item				Technical parameters	Unit	Remark
Frequency Range				200M-6G	MHz	Customized Frequency
Operating Voltage				28	V	24-32V
Maximum Power Output				47±0.5	dBm	50W@≤4A
Gain				47±1	dB	peak-to-peak value
In-band fluctuation				≤2	dB	peak-to-peak value
Spurious Emission	Operating In-band			≤-15dBm/1MHz	dBm	Center Frequency add CW Signal to Maximum Power Output Test
	Operating Out-of-band		9KHz~1GHz	No noise wave above normal base	dBm
			1G~12.75GHz		dBm
Output VSWR				≤1.30		No power up:Standard Grid Output -10dBm
				≤1.30		Power up:Dual Directional Coupler Test
high-low temperature test		Operating Ambient Temperature		-10~+55	ºC	Cold Start
		Gain Stability		±1.5 @-40ºC~+55ºC	dB
		Power Stability		±1 @-40ºC~+55ºC	dB
Power Supply Requirement				≥4A@+28Vdc;		Continuous Wave Output 50W
Power Supply Port				Power Cable:Red positive Black negative		Red positive Black negative
RF Output Connector				SMA		SMA External Screw Base
Warming				Temperature,VSWR,Under Voltage/Power,Over Current

Appearance

Frequency (MHZ)	Power (dBm)	Current (A)	Voltage (V)	Dimensions(mm)	Weight (kg)
420-450	47±1	≤4	24-32	111.7*37.2*17
720-840	47±1	≤4	24-32	111.7*37.2*17	0.1574
850-930	47±1	≤4	24-32	111.7*37.2*17	0.1574
970-1100	47±1	≤4	24-32	111.7*37.2*17	0.1574
1170-1280	47±1	≤4	24-32	111.7*37.2*17	0.1574
1550-1620	47±1	≤4	24-32	111.7*37.2*17	0.1574
2400-2500	47±1	≤4	24-32	111.7*37.2*17	0.1574
5150-5350	47±1	≤4	24-32	111.7*37.2*17	0.1574
5400-5700	47±1	≤4	24-32	111.7*37.2*17	0.1574
5725-5850	47±1	≤4	24-32	111.7*37.2*17	0.1574
