SDR11 PE100 Wear-Resistance HDPE Dredging Mud Pipe 24 Inch 10 Inch HDPE Floating Dredging Pipe

Product Description

Product Description

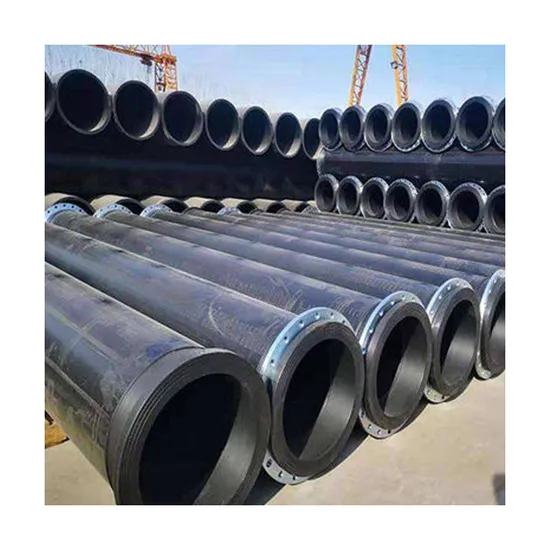

HDPE Dredge Pipe HDPE dredging pipe feature:
1. HDPE dredge Pipe is made from high density polyethylene resin. It has high rigidity and toughness, with little resistance but high mechanical strength.
2. Corrosion resistance: High resistance to attack from various types of chemicals. No electrochemical corrosion.
3. It has ultra-high wear resistance, abrasion degree is 4-8 times of steel pipe, useful life can reach more than five years.
4. It is very light so it's easy to install and transport and then save construction time.
5. Total Length ≤12m; Working pressure and inner diameter can be customized.
Product Parameters

PE100	0.4MPa	0.5MPa	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa	2.5MPa
Outside Diameter	PN4	PN5	PN6	PN8	PN10	PN12.5	PN16	PN20	PN25
	SDR41	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9	SDR7.4
	Wall Thickness (en)
75	-	-	2.9	3.6	4.5	5.6	6.8	8.4	10.3
90	-	-	3.5	4.3	5.4	6.7	8.2	10.1	12.3
110	-	-	4.2	5.3	6.6	8.1	10.0	12.3	15.1
125	-	-	4.8	6.0	7.4	9.2	11.4	14.0	17.1
140	-	-	5.4	6.7	8.3	10.3	12.7	15.7	19.2
160	-	-	6.2	7.7	9.5	11.8	14.6	17.9	21.9
180	-	-	6.9	8.6	10.7	13.3	16.4	20.1	24.6
200	-	-	7.7	9.6	11.9	14.7	18.2	22.4	27.4
225	-	-	8.6	10.8	13.4	16.6	20.5	25.2	30.8
250	-	-	9.6	11.9	14.8	18.4	22.7	27.9	34.2
280	-	-	10.7	13.4	16.6	20.6	25.4	31.3	38.3
315	7.7	9.7	12.1	15.0	18.7	23.2	28.6	35.2	43.1
355	8.7	10.9	13.6	16.9	21.1	26.1	32.2	39.7	48.5
400	9.8	12.3	15.3	19.1	23.7	29.4	36.3	44.7	54.7
450	11.0	13.8	17.2	21.5	26.7	33.1	40.9	50.3	61.5
500	12.3	15.3	19.1	23.9	29.7	36.8	45.4	55.8	-
560	13.7	17.2	21.4	26.7	33.2	41.2	50.8	62.5	-
630	15.4	19.3	24.1	30.0	37.4	46.3	57.2	70.3	-
710	17.4	21.8	27.2	33.9	42.1	52.2	64.5	79.3	-
800	19.6	24.5	30.6	38.1	47.4	58.8	72.6	89.3	-
900	22.0	27.6	34.4	42.9	53.3	66.2	81.7	-	-
1000	24.5	30.6	38.2	47.7	59.3	72.5	90.2	-	-
1200	29.4	36.7	45.9	57.2	67.9	88.2	-	-	-

Our Advantages
Pipe Floater
General Introduction:
Constructed from 100% closed cells reticulated foam, embedded layers of high tenacity fabrics and hot sprayed elastomer skin coating, PE cylindrical floats are produced by rotational moulding.
Available in two halves with coupling bolts or in monolithic version without bolts.General characteristics:
- Color: yellow, orange, red, blue.
- Accessories: screws, washers, nuts, spacers.
- Outer surface: smooth or ribbed.
- Empty: suitable for sea depth of 2/3 meters.
- Full with polyurethane: suitable for sea depth of 40 meters.
Specification of pipe floaters:

Nominal Diameter (mm)	Floater Inner Diameter (mm)	Floater Outer Diameter (mm)	Floater Length (mm)	Buoyancy (kg)
100	130	500	500	90
150	180	500	800	140
200	230	600	700	170
250	280	700	900	340
300	330	1000	1000	500
350	380	1100	1100	550
400	430	1200	1200	1100
450	480	1300	1300	1150
500	530	1300	1400	1300
550	580	1400	1500	1600
600	630	1450	1650	1900
650	680	1500	1800	2100
700	730	1600	1900	2200
750	780	1700	1900	2700
800	830	1800	2000	3100
850	880	2000	2500	4600
900	930	2200	2600	5000

HDPE Dredge Pipe Application:
1. Transport sand,mud,slurry in dredging projects ,sand suction projects and seawater treatment projects.
2. Transport mine tailings and slurry, metallurgical mines in the mining industry.
3. Transport pulverized coal and coal-water slurry of coal preparation plant in the coal industry.
4. Transport mud and corrosive media with slag in the chemical industry .
Company Profile Our unmatched expertise enables us to serve our clients with utmost accuracy than ourindustry competitors. With more than 20 years' hardwork, we have established ourselves asa reliable and worthy supplier of plastic pipes and fittings. We ensure that the quality of ourrange meets the requirements of our clients. Our range finds applications in irrigation, watertransportation, drainage, dredging, sand&mud suction, gas transportation, geothermal, communication cable protection and construction.
We cater basically to European countries, North America countries, Sout America coun.tries, Oceania countries, Asian countries, Middle East, African countries and supply all overChina under the able guidance of our company's long-term planning strategy and view ofhonest and trustworthy value. Welcome customers to visit our factory, and go forward hand inhand with us!
Certifications Packaging & Shipping FAQ Q: What the Raw material ?
A: We only use 100% virgin raw material.
Q: What is your MOQ?
A: As customer's request.
Q: why choose us?
A: We are a professional and leader of pipe fitting factory, we have competitive price an faster delivery time , and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us all information which you want, or tell us which kind of products you want? will contact you immediately, or we could recommend style to you.
Q: Can you put your Design and logo on product?
A: Yes, we have professional design service team, we can make any sample as your design, and also can put your logo on products.
Q: What's the payment term?
A: We can accept for L/C, T/T. Any other payment as your request.
Q: Still have a lot of questions?
A: Please feel free to contact with me ,welcome.

---
