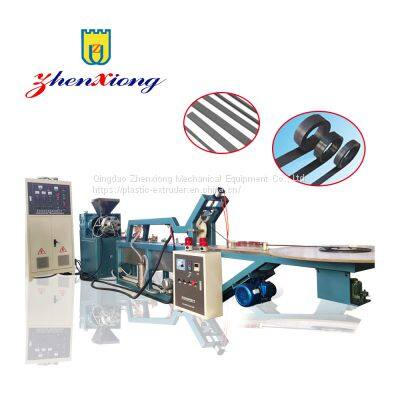

Fridge door gasket magnetic strip extruding machine
Combining foreign advanced technology, We developed magnetic strip extruder for producing strip used as refrigerator door-seal. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality. By this machine, 10,000m2 magnetic strip (section 9X2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time. The machine is suitable for new built, expanding and reforming factories.
| Technical parameters |
| Screw diameter: | ø60 mm | L/D: | 9:1 |
| Compressing: | 1.7 | Screw rotation speed: | 0-24 r/min(adjusted according material) |
| Driver motor: | 15KW | Haul-off power: | 0.55KW |
| Winder power: | 0.37KW*2 | Heating power | 2.9KW |
| Churning power hopper: | 0.37KW | Volume of cooling tank: | 1.8m3/h |
| Commonly extrusion speed: | 6-10m/min | Barrel and screw material: | Alloy |
| Temperature range: | 0-120 ºC | Barrel temperature in working: | 60-100 ºC(not pre-heating temperature) |
| Total installation capability: | About 25KW | Cooling tank material: | Stainless steel |
| Water pimp length: | 3M | Magnetizing capacitance: | 6000 micro farad |
| Magnetizing voltage: | 6000 micro farad | Magnetizing power: | 500V |
Else we supply other parts as follows:
(1) Automatic refrigerator door gasket production line& mould.
(2) Automatic refrigerator door gasket welding machine & mould.
(3) Semi-automatic refrigerator door gasket welding machine & mould.
(4) Magnetic strip inserting machine to gasket.
(5) Automatic 45 degrees cutting machine.
(6) Refrigerator door gasket mould.
(7) Soft PVC granulator & crusher.
(8) Other downstream equipments.
>>
