High Speed High Torque Drilling and Tapping Center Machine Size T8

Product Description

BRIEF INTRODUCTION
High Speed High Torque Drilling and Tapping Center Machine T6(travel 600×400mm)
Zhongnan's T series tapping center is a new generation machine tool with high-precision, high-speed, high-efficiency. With once clamping, it can do various machining of parts such as milling, drilling, reaming and tapping automatically and continuously. The machining of various planes, holes and complex contour surfaces suitable for medium batch production, especially small and medium-sized box parts with many holes, more convenient, saves clamping time, shortens the production cycle, and improves the machining accuracy. It is widely used in industries of defense industry, tractors, light industry, automobile manufacturing, textile machinery, molds and etc..
Features of Zhongnan's CNC drilling and tapping center: The high-speed spindle is used to realize high-speed and high-precision machining. Equipped with imported 21T magazine, tool change is fast and stable. The machine has a large inclined angle design for chip removal, quickly flushes away iron chips, and speeds up the return of cutting fluid Powerful mechatronics application technology improves the response speed of transmission, eliminates no action during processing, reduces cutting time, and significantly improves production efficiency High rigidity FC300 casting. High speed spindle Max RPM 20000
Parameters of Zhongnan's CNC tapping center T6

Name	Unit	Model T6
Worktable dimension(L×W)	mm	700×400
Max load of worktable	kg	250
T groove (quantity×width×distance)	mm	3×14×125
X axis travel	mm	600
Y axis travel	mm	400
Z axis travel	mm	320
Spindle end to worktable	mm	130-450
Spindle center to column	mm	410
Spindle type		BT30
Speed of spindle	RPM	20000
Drive of spindle		Direct drive
Power of spindle	Kw	3.7/5.5
Torque of motor(X/Y/Z)	N.m	8/8/12
CNC system		Fanuc 0i-MF/MITSUBISHI M80/SIEMENS
Rapid feed of X/Y/Z	mm/min	48/48/48
Capacity of magazine(ATC)	pieces	16/21T
Positioning accuracy	mm	0.008
Repositioning accuracy	mm	0.005
Air supply	Kg/cm2	6
Weight of machine	kg	3500
Dimension(L×W×H)	mm	1900×2340×2450

Features:

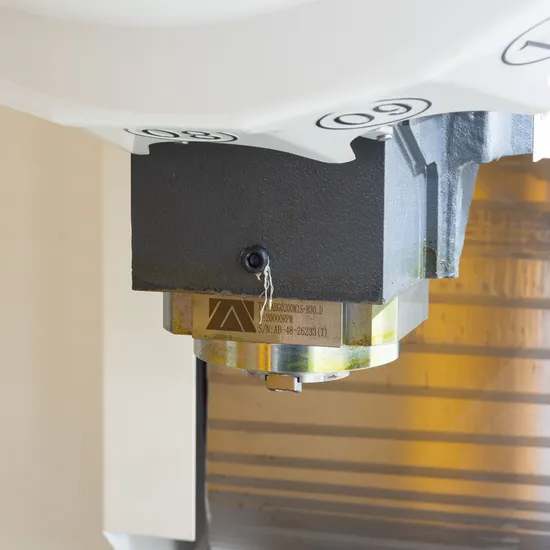

High speed and high torque spindle with fast response speed, adopts ceramic ball bearings, which can substantially expend the spindle's using time.
Imported 21T ATC with swift tool change speed. High rigidty machine body with powerful drilling capacity.


Standard Configurations

No.	Name	Quantity	Remark
1	Fanuc 0i MF	1
2	Remote	1
3	ATC	1	21 pieces
4	Automatic lubrication	1
5	Spindle blowing system	1
6	Air curtain protection	1
7	Standard tooling	1 set
8	Cooling system with tank and double pumps	1
9	LED working lamp	1
10	3-color working lamp
11	Flushing system	1
12	Cleaning water gun and air gun

Company Profile
Nantong Zhongnan Intelligent Technology owns Zhongnan CNC technology, Zhongnan Intelligent, Xinsheng CNC technology and other subsidiaries such as foundry factory. Since its establishment in 2000, Zhongnan started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production lines of CNC vertical machining center, high-precision gantry machining center, horizontal machining center, CNC vertical and horizontal milling machines, Zhongnan is one of the reputed manufacturers covers full production lines in the metal cutting machines industry in China. The products of the group company are widely used in defence industry, aerospace, automobile, green energy, mold and other fields of manufacturing.
Zhongnan Intelligent Technology has a production park covers 100,000 square meters. There are more than 380 employees, 30 senior engineers, and 20 R&D engineers. Production capacity covers the entire production chain of casting manufacturing, machining, painting, assembly, commissioning, inspection, etc.
100,000 square meters factory.
Factory Workshop Show
Metal working workshop 1 Metal working workshop 1 Painting workshop
Assembly workshop 1 Assembly workshop 2 Machines ready in stock
Sheet metal workship 1 Sheet metal workship 1 Foundry plant

---
