US$25,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name

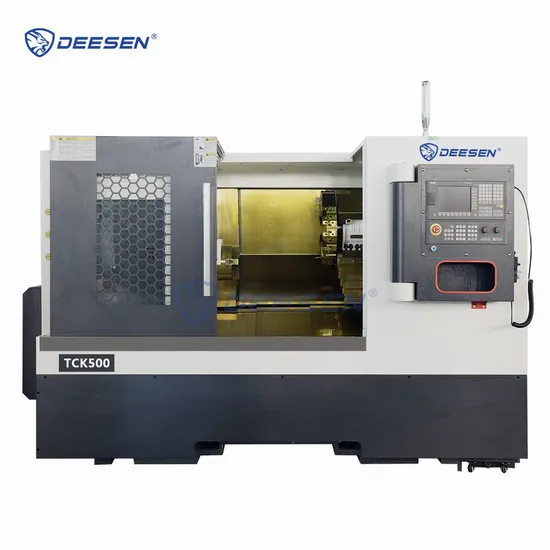

Slant Bed CNC Lathe Tck500
Swing Over Cross Slide
380mm
Max.Workprice Length
500/1000/1500/2000/3000mm
Infinite Speed Change
Tool Holder Type Hsk-A63tools
Z Axis Travel
500/1000/1500/ 2000/3000
Tailstock Quill Taper
Mt5
Tailstock Quill Travel
150 mm
Transport Package
Wooden Case
Specification
4350*1800*1800mm
Production Capacity
300/Month
Packaging & Delivery
Package Size
455.00cm * 200.00cm * 200.00cm
Package Gross Weight
7000.000kg
Product Description
TCK500 Basic Customization Slant Bed CNC Lathe for Metal/Wood/Plastic processing Product Description
CNC LATHE INTRODUCTIONThis series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
Product Parameters
FEATURES
One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
Siemens controller, hydraulic turret, hydraulic chuck, hydraulic tailstock | Fanuc or other brand CNC controller, power turret, tool setting arm |
SPECIFICATIONS
SPECIFICATIONS | Units | TCK500 | TCK630 | TCK800 |
Swing over bed | mm | 500 | 630 | 800 |
Swing over cross slide | mm | 380 | 440 | 650 |
Distance between centers | mm | 500/1000/1500/ 2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
Guideway width | ° | 45 | 45 | 45 |
Spindle bore | mm | 82 | 105 | 105 |
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle speed range | rpm | 35-3000 | 150-1500 | 50-1500 |
Chuck | in | 10'' Hydraulic chuck | 15'' Hydraulic chuck | 15'' Hydraulic chuck |
Turret/tool post | - | Hydraulic turret 8position | Hydraulic turret 8position | Hydraulic turret 12position |
Tool shank size | mm | 25 x 25 | 32 x 32 | 32 x 32 |
Boring tool holder size | mm | φ40 | φ50 | φ50 |
X axis travel | mm | 300 | 335 | 400 |
Z axis travel | mm | 500/1000/1500/ 2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
X axis rapid traverse | mm/min | 10000 Linear guideway | 4000 Hard | 10000 Linear | 10000 Linear guideway |
Z axis rapid traverse | mm/min | 15000 Linear guideway | 6000 Hard | 15000 Linear | 15000 Linear guideway |
Tailstock quill diameter | mm | φ75 | φ130 | φ130 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Main spindle motor | kw | 15 | 15 | 22 |
Coolant pump motor | kw | 0.37 | 0.37 | 0.37 |
Weight for 500 | kg | 6000 | 6500 | 7000 |
Weight for 1000 | kg | 6500 | 7000 | 7500 |
Weight for 1500 | kg | 7000 | 7500 | 8000 |
Weight for 2000 | kg | 7500 | 8000 | 9000 |
Weight for 3000 | kg | 8500 | 9000 | 9500 |
Dimension for 500 | mm | 4350x1800x1800 | - | - |
Dimension for 1000 | mm | 4850x1800x1800 | 4850x2050x2300 | 4850x2570x2400 |
Dimension for 1500 | mm | 5350x1800x1800 | 5350x2050x2300 | 5350x2570x2400 |
Dimension for 2000 | mm | 5850x1800x1800 | 5850x2050x2300 | 5850x2570x2400 |
Dimension for 3000 | mm | 6850x1800x1800 | 6850x2050x2300 | 6850x2570x2400 |
Detailed Photos
COLLET/CHUCK
Standard with spring collet or hydraulicchuck, suitable for small workpiece.
TOOL POST/TURRET
Standard with 4 pcs gang type tool
post,4/6/8/12 station turret
TAIWAN LINEAR RAIL&
BALL SCREW
Taiwan linear rail & ball screw
with high precision and speed.
HYDRAULIC TAILSTOCK
Standard with hydraulic tailstock.
MACHINE STRUCTURE 1.Integrated casting bed body, resistant to tension and earthquake resistance.
2.45 ° inclined bed for more convenient chip removal.
CNC CONTROLSYSTEM Taiwan precision lead screw.
Standard :GSK ,
Optional :Siemens,Fanuc,Syntec, Mitsubishi and others.
Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise.
In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing.
In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%.
The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing.
In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services.
Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ
1:How can I choose the most suitable machines ? |
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . |
You can also send us the products drawing ,we will choose the most suitable machines for you . |
2: What's your main products of your company? |
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . |
3: Where is our factory located? How can I visit there? |
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. |
4. What is your trade terms? |
A : FOB, CFR and CIF all acceptable. |
5: What's the Payment Terms ? |
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; |
Irrevocable LC at sight . |
6: What's the MOQ? |
A: 1 set .(Only some low cost machines will be more than 1 set ) |
>>
