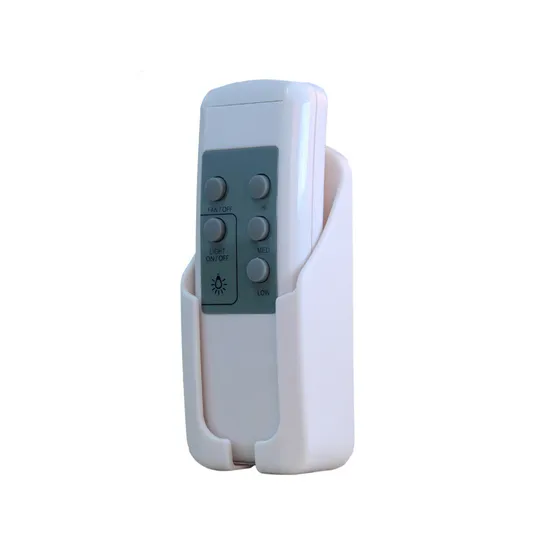

Smart Remote Controller for Ceiling Fan-Light Control

Product Description

Smart Remote Controller for Ceiling Fan-Light control
Product Description Features(AS-CF239N):
1. Be suitable to be installed into any decorative ceiling fans;
2. With adjustable, capacitor speed adjustment;
3. Radio controls(433.92MHz);
4. Apply to ceiling fan and decorative ceiling fan;
5. Suitable for home, factory, hotel, office, etc;
Operating Instruction:
1. Turn on ceiling fan by pressing LOW, MID or HI button;
2. Turn off ceiling fan by pressing the FAN/OFF button;
3. Turn on/off the lamp by pressing Light ON/OFF or Light DIM button;
4. The light dim by pressing the Light DIM button more than 1 second

Product Parameters 1. Input voltage: 110V/220-240V
2. Lamp power: 600W Max
3. Moter Power: 150W Max
4. Operation range: Radius 20M (any direction)

Electrical Parameters:
Voltage	220~240V(50Hz/60Hz)	Operating temperature	0C~55C
Light load	600W(maximum)	Relative humidity	Non-condensing 20-90%
Motor load	150W(maximum)	Working distance	RF≥ 10m
Receiver dimension	110*60*21mm	Receiver weight	91g
Transmitter dimension	138*49*23mm	Transmitter weight	55g
