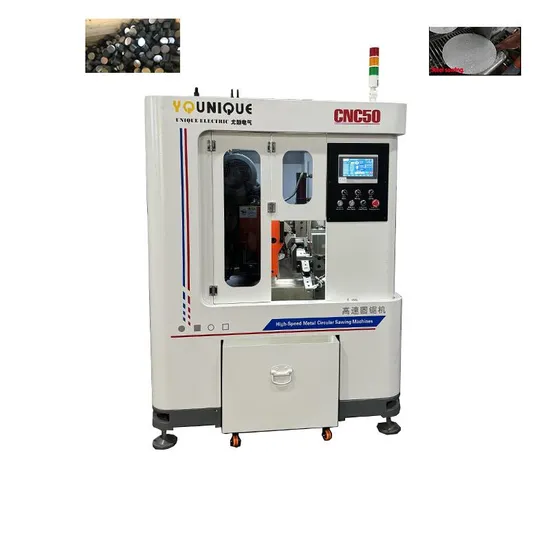

CNC50 Electricity Metal Circular Saw Cutting Machine

US$19,998.00-24,500.00 1 Set (MOQ)

Basic Info.

Model NO.
CNC50
Certification
CE
Condition
New
Control
Automatic
Application
Metal
Power Source
Electric
Layout
Horizontal
Machine
Custom Machine
Power
380V
Air Power
0.5-0.7MPa
Spindle Motor
7.5kw-4p
Transport Package
Wooden Case
Specification
1950X1300X1700mm
Trademark
Yqunique
Origin
China
HS Code
8461500090
Production Capacity
1000 Set/Year

Packaging & Delivery

Package Size
300.00cm * 120.00cm * 150.00cm
Package Gross Weight
1100.000kg

Product Description

Product Description High speed circular saw cutting machine can cut copper, brass, aluminum and all kinds of metal bar in bundle or in single.
Servo motor feeding, hydraulic clamping, oil mist lubrication cutting, one person can operate more than one machine.
Fully automatic tube cutting machine adopts horizontal structure, including cooling system, oil pressure system, adjustment system, which is easy to operate and safe.
This machine has the characteristics of stable structure, good stiffness, light weight and high dynamic response. It is a high-performance automatic tube cutting machine.
Technical Parameters
project Technical parameters
The power supply voltage 380v
The external air pressure 0.5-0.7MPa
The workpiece length 700mm
Machining diameter pipe tube ∅15-∅70
The motor power 7.5KW-4P
Machine size/weight 1950mm*1300mm*1700mm/3100kg
The main circuit of the machine is controlled by imported PLC computer, the operation is simple, sensitive, convenient maintenance. Automatic feeding adopts servo motor, precision lead screw, linear bearing, and its cutting accuracy is ±0.1mm. Counters can set the processing time, it will stop automatically after completion. The counter can accumulate a day's work. When the processing size changes, just change the size in the text display to work, without manual positioning or hardware positioning.
And automatic tube cutting machine is suitable for cutting round tube, square tube, rectangular tube and many kinds of special-shaped pipe and bar.
