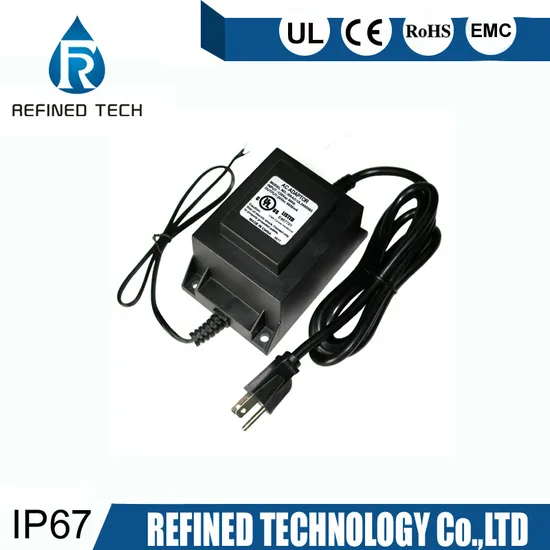

Refined IP67 AC Waterproof Underwater Transformer for Pool Light

US$32.50 1 Piece (MOQ)

Basic Info.

Model NO.
RCO-US-300W
Driving Method
LED Regulator Voltage
Circuit Structure
Toroid Core
Certification
TUV, CE, RoHS, CCC
Power Supply Mode
Constant Voltage Source
Modulation System
PFAW
In-Out
Lifting Pressure Type
Power Supply Voltage
AC85-265
Pack Sealing Size
Multi-Winding Transforme
Brand
Refined Outdoor Waterproof Toroidal Transformer
Frequency Characteristics
Low Frequency
ABS Fire Material
PC Cover
Supplier Homepage Products Toroidal Tr
Waterproof Performance
IP Rating
IP64 IP66 IP67 Rating for Outdoor Use
Primary/Secondary Winding
Enamelled Copper Wire
Application
Swimming Pool, Garden Light, LED Underwater Lamp
Shape of Core
Ring
100% Copper Wire Made
Toroidal Style
High Performance Insulation
Epoxy Resin
Outdoor Waterproof Transformer with Plug
Highly Energy Efficient Water-Safe Making
Transport Package
Export Standard Carton or Customize Strong Pallet
Specification
Multi-winding Transforme
Trademark
Toroidal Transformer
Origin
China
HS Code
85043190
Production Capacity
50000PCS/Year

Product Description

Product Description
Name : 100W 300W Guardrail Waterproof Transformer
10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting
Specification :
Model Power Input Voltage(V) Output Voltage(V)/A
RCO-10W 10W 110-120VAC
230-240VAC
50/60Hz
12VAC 0.83A/ 24VAC 0.42A
RCO-15W 15W 12VAC 1.25A/ 24VAC 0.62A
RCO-20W 20W 12VAC 1.66A/ 24VAC 0.83A
RCO-25W 25W 12VAC 2A/ 24VAC 1A
RCO-30W 30W 12VAC 2.5A/ 24VAC 1.25A
RCO-40W 40W 12VAC 3.33A/ 24VAC 1.66A
RCO-45W 45W 12VAC 3.75A/ 24VAC 1.87A
RCO-50W 50W 12VAC 4.16A/ 24VAC 2.08A
RCO-60W 60W 12VAC 5A/ 24VAC 2.5A
RCO-70W 70W 12VAC 5.83A/ 24VAC 2.91A
RCO-80W 80W 12VAC 6.66A/ 24VAC 3.33A
RCO-85W 85W 12VAC 7A/ 24VAC 3.5A
RCO-100W 100W 12VAC 8.3A/ 24VAC 4.16A
RCO-120W 120W 12VAC 10A/ 24VAC 5A
RCO-150W 150W 12VAC 12.5A/ 24VAC 6.25A
RCO-200W 200W 12VAC 16.66A/ 24VAC 8.33A
RCO-250W 250W 12VAC 20.83A/ 24VAC 10.42A
RCO-300W 300W 12VAC 25A/ 24VAC 12.5A
RCO-350W 350W 12VAC 29.16A/ 24VAC 14.58A
1).WORKING AND SAFETY PROTEETION
Electrostatic Shield Magnetic Shield
Temperature Protection Over Current Protection
2).INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown
Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)
3).TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.
4).MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:10VA-350VA

6) Waterproof toroidal Transformer's materials:
* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP
Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance

Applications: Garden light
Swimming pool
LED underwater lamp
LED Ground light
Outdoor power Supply
Humidifier
