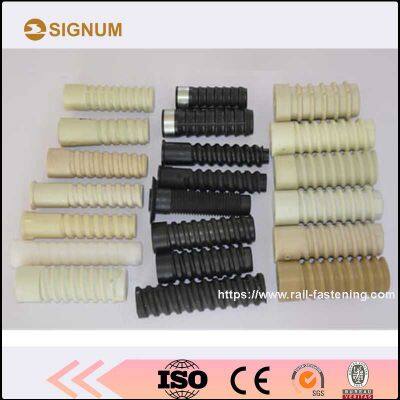

Rail Plastic Sleeve for Railroad Fastening System
Rail plastic dowels are part of the rail fastening system. They are usually pre-inserted individually into concrete sleepers before assembling the rail fastening system components. Rail plastic dowels are also knew as concrete dowels, concrete inserts, rail plastic sleeves, plastic inserts, etc. The function of rail plastic dowels are to insulate the fastener parts from the ties.
Plastic Screw Dowel: PA66 : Nylon 66.69%, glass fiber 30%, other 1%
No.
|
Technique parameter
|
Unit
|
Technical requirement
|
Value
|
1
|
Density
|
g
|
1.3-1.45
|
1.45
|
2
|
Tensile strength
|
Mpa
|
≥170
|
178
|
3
|
Elongation
|
%
|
≤4.4
|
4.0
|
4
|
Bending Strength
|
Mpa
|
≥250
|
290
|
5
|
Impact Strength(No gap)
|
KJ/m2
|
≥80
|
85
|
6
|
Melting point
|
°C
|
250°C-270
|
270
|
7
|
Insulation resistance
|
Ω
|
≥1×108
|
5×108
|
8
|
Glass fiber content
|
%
|
30-35
|
35
|
9
|
Hardness
|
HRR
|
≥110
|
118
|
HDPE Plastic Screw Dowel:
No.
|
Technique parameter
|
Unit
|
Technical requirement
|
Value
|
1
|
Density
|
g/
|
0.95-0.98
|
0.95
|
2
|
Tensile strength
|
Mpa
|
≥19
|
19
|
3
|
Elongation
|
%
|
>80
|
150
|
4
|
Melting point
|
°C
|
170-190
|
190
|
5
|
Insulation resistance
|
Ω
|
≥1×1010
|
3.5×1010
|
6
|
Hardness
|
A
|
≥98
|
98(A)
|
Function of plastic dowel
The main function of rail plastic dowels are to insulate the fastener parts from the ties. Rail plastic dowels are used to guarantee the good connection and linkage of the rail fastening system with the concrete sleeper, with screw spikes or bolts. These plastic dowels of the railway sleeper can also be responsible for the electrical insulation.
Material of plastic dowel
Rail plastic dowels are usually made of HDPE or PA6. The high portion of durable plastics ensures corrosion protection. Sdu Plastic dowel 25mmx165mm and Sdu plastic dowel 25mmx140mm short are most favorite.
Package of plastic dowel
Normally, the package of the plastic dowels are 25kg Per Woven Bag in Gap Wooden Cases.
Signum rail fastening can provide different types of rail plastic dowels with various specifications to meet customers’ requirements. Our featured products include Sdu25 rail plastic dowel, Sdu26 rail plastic dowel, Sdu9 rail plastic dowel, Sdu S3 rail plastic dowel, etc.
COMPANY INFORMATION
Kunshan Signum Machinery Technology Co.,Ltd is a professional supplier of Rail Plastic Dowel.
We can provide railway fastening products according to customers drawings and samples.Our main products are as following:
1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.
2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.
3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.
4. Tie plate, Base plate, Rail plate, Rail fixing base, Rail Pads, Sole plate, Sole pad
5. Fish plate, Joint bar, Rail joint, Splice bar.
6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.
7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.
8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.
9. Plastic dowel, Guide plate, Nylon insert.
10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.
11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.
12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.
13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A.
We can make products as per customers' drawings and samples.
>>
