Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Precision
Normal Precision
Mainly Aim
Machining Thread
Machining Material
Metal and Other
Product Description

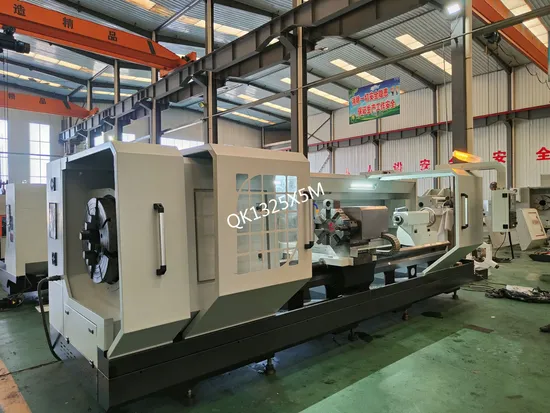

QK1325X5M CNC pipe thread lathe for oilfield industrial
CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.This series lathe machine is widely used in industries including petroleum exploiting,minerals mining,chemical piping. it is high-efficient and repairing drilling pipe,drilling rod,thread coupling and so on.
FEATURES
1.Big spindle bore and double chuck to ensure process big diameter pipe
2.One-piece bed adopts high strength iron to ensure rigidity and precision
3.ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4. carriage and guide way contact surface use Turcite B to maintain accuracy.
Product Parameters
SPECIFICATION | UNIT | QK1325 | QK1327C |
Manual | HYD | Manual | HYD |
Capacity | Swing over bed | mm | 800-1000 | 800-1000 |
Swing over coss slide | mm | 480-680 | 480-680 |
Distance between center | mm | 1000-6000 | 1000-6000 |
pipe threading range | mm | 50-250 | 50-270 |
Guideway width | mm | 600 | 600 |
Max load capacity | T | 4 | 4 |
Spindle | Spindle bore | mm | 255 | 280 |
Spindle speed steps | - | VF.4 steps | HYD.4 steps | VF.4 steps | HYD.4 steps |
Spindle speed range | pm | 20x420 | 20x420 |
Chuck | mm | φ630 four jaw independent | φ680 four jaw independent |
Turret | Turret /tool post | - | NC turret4 position | NC turret 4posticn |
Tool shank size | mm | 40x40 | 0x40 |
Feed | X axis travel | nm | 420/500 | 420/500 |
Z axis travel | m | 1000-6000 | 1000-6000 |
X axis rapid traverse | mmymin | 4000 | 4000 |
Z axis rapid traverse | rmin | 6000 | 6000 |
Tailstock | Tailstock quill diameter | mm | φ120 | φ120 |
Tailstock quill taper | | MT6 | MT6 |
Tailstock quill travel | mm | 250 | 250 |
Motor | main spindle motor | kW | 15 | 15 |
Coolant pump motor | kW | 0.25 | 0.25 |
Dimension | WidthxHeight | mm | 1930x1900 | 1930×1900 |
Length | nm | 3600-8600 | 3600-8600 |
Weight | Net weight | | 6-9.5 | 6.2-9.7 |
Configuration :
Standard Accessories
Siemens controller,NC turret,automatic lubrication, coolant pump,semi-shield
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller,quick change tool post, hydraulic turret or power turret,pneumatic chuck,hydraulic tailstock, full-shield
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.
Detailed Photos
>>
