Basic Info.
Beam Angle
6degree to 120degree
LED Lamp Quantity 1
18*18W Rgbwauv 6in1 Multi-Color LED Lamp
Base Material
Aluminum Alloy
Transport Package
Carton/Flycase
Specification
Dimension: 56*25*28cm N. G.: 6KGS
Production Capacity
500PCS/Week
Product Description

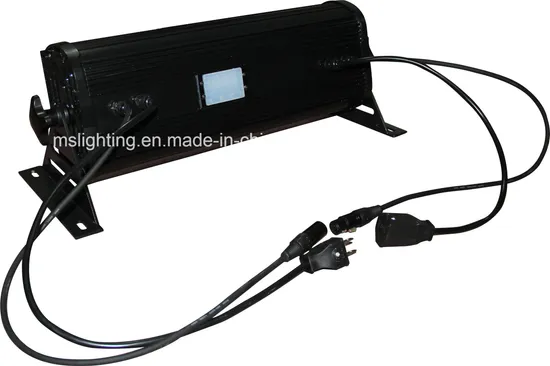

MODEL: LED 2009K: 18*18W RGBWAUV 6IN1 Multi-Color LED Lamp
Control signal: DMX512
Power consumption: 324W
Protection rating: IP 65
1) Input voltage: AC 90-130V/280V-240V/50-60Hz, auto change
2) Power: 350W
3) LED size: 18W RGBWAUV 6IN1 Multi-Color LED Lamp
4) DMX Channels: 9CH/6CH
Compatibility:
1. Color Range 16.7 million additive RGB colors; Continuously variable intensity (256× 256× 256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: It is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, sound activity and Save function.
5.8channel Mode and 5channel Mode would change each other in every light
6. DMX Channels-9CH Mode:
CH 1 General Dimmer (1-255, from dart to light)
CH 2 Red (1-255, Dimmer, from dart to light)
CH 3 Green (1-255, Dimmer, from dart to light)
CH 4 Blue (1-255, Dimmer, from dart to light)
CH 5 White (1-255, Dimmer, from dart to light)
CH 6 Amber (1-255, Dimmer, from dart to light)
CH 7 UV (1-255, Dimmer, from dart to light)
CH 8 Strobe & Color change &color gradual change's open
CH 9 Strobe & Color change & color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast)
7. DMX Channels-6CH Mode:
CH 1 Red (1-255, Dimmer, from dart to light)
CH 2 Green (1-255, Dimmer, from dart to light)
CH 3 Blue (1-255, Dimmer, from dart to light)
CH 4 White (1-255, Dimmer, from dart to light)
CH 5 Amber (1-255, Dimmer, from dart to light)
CH 6 UV (1-255, Dimmer, from dart to light)
>>
