Ultra Compact Industrial Motherboard J4125 Quad-Core/16GB DDR4 Dual LAN + Msata Storage 120mm Mini Industrial Computer

US$85.00 1 Piece (MOQ)

Basic Info.

Model NO.
NUC-41X VER: 1.2
Operating Temperature
-20℃ to 70℃
Power Supply Type
ATX12V
Storage Interface
SATA 3
Supported Memory Type
DDR4
Processor
Intel J4125 2.00GHz Quad Core Processor
RAM
1*So DDR4 Slot
Power
DC12V Power Supply
Ethernet Ports
2*RJ45 LAN Port
Display
1*VGA 1*Hdm I
Storage
1* SATA HDD Port 1* Msata Slot
Certification
CE, RoHS, FCC, Kc
Name
Tiny PC Intel Celeron J4125 Pfsense Nuc Dual LAN N
Transport Package
Netrual Carton Box
Specification
120mm x 120mm
Origin
China
Production Capacity
50000PCS/Year

Product Description

Integrated Intel® Celeron J4125/2.0GHz Quad Core processor,Compatible with Intel® Gemini Lake full series CPU 1*SO-DIMM memory slot,Support single channel 2400MHz DDR4 Memory,up to 16GB 1* VGA,1*HDMI (2*HDMI optional),2* USB 2.0,4* USB 3.0,2* RS232 (Can support 2*RS485)
1*Mini-PCIe,1*MSATA;
2* Gigabit Ethernet Ports,Support Wake-On-LAN/PXE
Adopt DC 12V-19V
Dual LAN LVDS J4125 Embedded X86 Intel NUC Small Motherboard
Specification
Processor Integrated Intel® Celeron J4125/2.0GHz Quad Core processor TDP 10w,Compatible with Intel® Gemini Lake full series CPU
Memmory 1*SO-DIMM memory slot,Support single channel 2400MHz DDR4 Memory,up to 16GB
Display Integrated Intel® HD 600 Graphics
1* VGA,1*HDMI (2*HDMI as option)
Support VGA/HDMI synchronous/Asynchronous display
Ethernet Ports 2* Realtek RTL8111H Gigabit Ethernet Ports(1*LAN option),Support Wake On LAN /PXE
Storage 1* 7pin SATA3.0,Transfer rate up to 6Gbps
1* MSATA 3.0slot (Long card)
Audio Onboard ALC897 7.1-Channel Hi-Fi Audio Controller,Support MIC/Line-out,Amplifier 2Ω 5W dual-channel
Extension slot 1* Mini-PCIE Slot (Half-Card /Full Card all are supported),Support WIFI/4G module(If need 4G support,Need hardware modification)
Back I/O 1* HDMI
1* VGA (Default,HDMI1.4 optional)
2*USB2.0
2* RJ-45 Gigabit Ethernet Ports ( USB2.0 is LAN2's optional choice )
1* 12V DC Power Input Interface
Front I/O 4* USB 3.0
2* DB9 RS232 COM (RS485 supported by jumper setting for COM1/COM2)
1* Line out & MIC (2 to 1 )
1* Hard Disk Indicator
1*Power On/Off button with Light
Inner I/O 1* USB 2.0 1*4Pin(2* USB 2.0 avaiable Only effect when 2*LAN & 4G un-supported)
1* Amplifier Interface 1*4pin
2* COM (Optional,Same signal with Console port ,COM1 &COM2 support RS485)
1*4pin ATX power
1* Hard Disk Power Interface
1* Front panel switch button and indicator light interface 2*5Pin
Fan Interface Fanless Heatsink Design ,Reserve 1*4pin CPU fan interface
GPIO Support 4-way output input GPIO
BIOS 64Mb Flash ROM
Watchdog Support Hardware Reset function (L256,0~255s)
OS Windows 10/Linux
Power Type Adopt DC 12V -19V Power Supply
Working Temp. 60ºC~-10ºC
Storage Temp. -20ºC~70ºC
Working Humidity 5%-95% relative humidity,No-condensing
Dimmension 120mm x 120mm

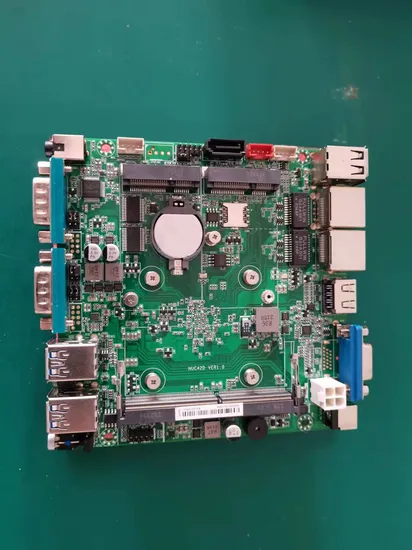

Pictures

FAQ
1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
