Upd-800 Automatic Inline Pallet Dispenser with Turntable Conveyor and Pallet Wrapper

US$3,400.00-3,700.00 1 Set (MOQ)

Basic Info.

Model NO.
UPD-800
Structure
Conveyor System
Material
Carbon Steel
Material Feature
Rust Resistant
Application
Chemical Industry, Power Plant
Condition
New
Model
Upd-800 Automatic Inline Pallet Dispenser
Pallet Size
W 800 mm X L 1200 mm Euro Pallet
Loading Method
Forklift Loading
Distribution Speed
4 Pallets/Min
Lifting System
Motor Chain Lifting
Clamping System
Pneumatic Clamping
Storage Capacity
Std. 10 Pallets (Others Opt.)
Air Supply
0.5 - 0.7 MPa
Voltage
220 VAC 1 pH / 380 VAC 3 pH 50/60 Hz
Power
0.75 Kw
Machine Size
L 1900 mm X W 1700 mm X H 1850 mm
Machine Weight
450 Kg
Transport Package
Plywood Seaworthy Wooden Case for LCL;
Specification
L 1900 mm x W 1700 mm x H 1850 mm
Trademark
UCPACK
Origin
Qingdao, China.
HS Code
8428391000
Production Capacity
40 Sets/Month

Product Description

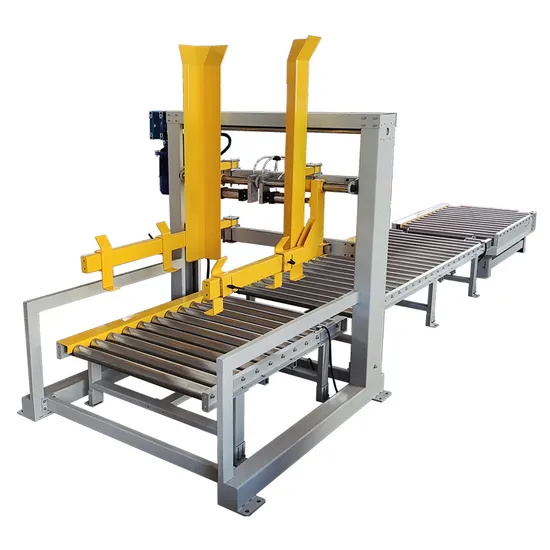

UPD-800 Automatic Inline Pallet Dispenser with Turntable Conveyor and Pallet WrapperProduct DescriptionThis System Consist of a Pallet Dispenser which Storage 10 Euro Pallets that Distributing One by One Onto Underneath CDLR, a Buffer CDLR that Buffer One Empty Pallet, a Turntable Conveyor that 90 Degree Change Pallet Flow Direction, a Buffer CDLR that Buffer One Empty Pallet, a CDLR that Positioning Empty Pallet for Palletizing, a Buffer CDLR that Buffer One Palletized Pallets, an Inline Pallet Stretch Wrapper that Auto Wrapping the Palletized Pallets and an Outfeed CDLR that Receive Finished Pallet for Forklift Unloading.
Pallet Dispenser is the Vital Piece of Material Handling Equipment which can be Integrated into Production Line for Automating Pallet Stacking or De-stacking. A Stack of No More than 10 Pallets can be Inserted Into the Pallet Dispenser by Forklift (Or Production Line), after which the Pallets are Automatically Individually De-stacked onto Underneath Production Line Via the Control of PLC & Sensors.Specifications
ModelUPD-800 Automatic Inline Pallet Dispenser
Pallet SizeW 800 mm x L 1200 mm Euro Pallet
Loading MethodForklift Loading
Distribution Speed4 Pallets/min.
Lifting SystemMotor Chain Lifting
Clamping System Pneumatic Clamping
Storage CapacityStd. 10 Pallets
Underneath Conveyor Height (H)Std. 500 mm ± 50 mm
Air Supply0.5 - 0.7 MPa
Voltage380 VAC 3 ph 50/60 Hz
Motor0.75 kw DELI Braked Gear Motor
Air CylinderAirTAC x 4 Pcs
Machine SizeL 1900 mm x W 1700 mm x H 1850 mm
Machine Weight450 kg
FeaturesAutomatic Inline Pallet Dispenser
Storage 10 Euro Pallets and Distributing One by One Onto Underneath Chain Driven Live Roller Conveyor (CDLR);Designed for W 800 mm x L 1200 mm Euro Pallets
Forks Manually Adjustment to Suit Other Sized Pallets;Underneath CDLR
Receiving Stacked Pallets and Taking it Away One by One;Turntable Conveyor
90 Degree Change Pallet Flow Direction;Slewing Bearing
Turntable Conveyor Rotating Driven By Slewing Bearing; 90 Degree Positioning Proximity Switch;Inline Pallet Stretch Wrapper
Auto Wrapping the Palletized Pallets;Options* Pallet Size or Pallet Infeed Direction;
* Special Model that Designed for 2-Way Pallet;
* Higher Pallet Weight (Steel Pallets);
* Storage Capacity (12, 15, 18, 20 Pallets);
* Underneath Conveyor;
* Underneath Conveyor Line Height;
* Motor Brand;
* Air Cylinder Brand;
* PLC Programming, Inverters and Sensors;
* Voltage Based on Country of Destination;
* SUS304 or SUS316 Material;
* Powder Coated Color (RAL);
Gallery
CertificationsAbout Us
Established in 2015 and located in seaside city of Qingdao, Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions.
With the continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
From the beginning of our company, we believe People Make the Difference, and without our highly trained sale team and experienced engineer team we would not be able to provide you with the excellent service which we are known for in the past years.
Commit to the highest standards in both our product and our staff, we are eager to please, so please let us know how we can help.
