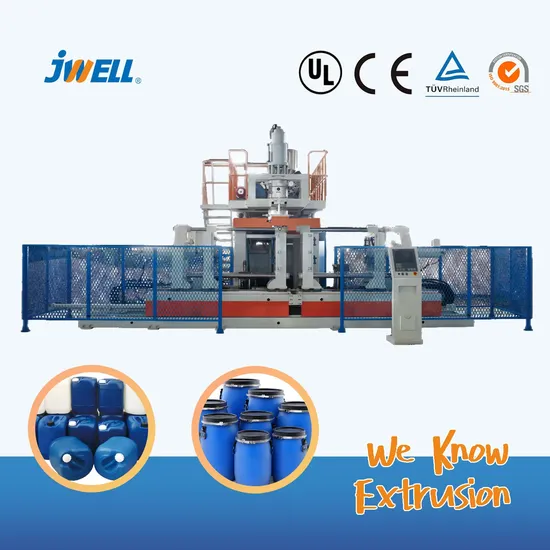

Jerrycan Blow Molding Machine of 15L 30L 50L

US$53,640.00-83,640.00 1 Piece (MOQ)

Basic Info.

Model NO.
JWZ-BM
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Provide
Screw Type
Single Screw
Model
Bm30d/50d/100d
Max Product Volumn
100L
Die Head Structure
Accumulation Type
Main Screw Diameter
120mm
Max Plasticizing Capacity
280kg/H
Driving Motor
110kw
Oil Pump Motor Power
30kw
Clamping Force
600kn
Spaace Between Platen
500-1300mm
Platen Size W*H
1020*1000mm
Max Mould Size
800*1200mm
Heating Power of Die Head
30kw
Machine Weight
25t
Total Power
195kw
Transport Package
Wooden Cases
Specification
6.0*10.2*4.2m
Trademark
Jwell
Origin
China
Production Capacity
280kg/H

Packaging & Delivery

Package Size
1200.00cm * 1200.00cm * 1200.00cm
Package Gross Weight
20000.000kg

Product Description

Product Description
Product Parameters
Descriptions:
· Suitable for producing 15-100L different size of jerrycan, open-top drums chemical packaging products.
· Adopt high output extrusion system,double station, accumulating die head.
· Optional view strip line system.
· Optional hydraulic servo control system.
· Optional double layer co-extrusion system.

Model Unit BM30D BM50D BM100D
Max product volume L 30 50 100
Dry cycle Pc/h 800 600 500
Die head structure Accumulating type
Main screw diameter mm 90 100 120
Max plasticizing capacity (PE) kg/h 180 220 280
Driving motor Kw 55 75 110
Accumulating volume L 5.2 6.2 12.8
Oil pump motor power(Servo) Kw 22 30 30
Clamping force KN 280 400 600
Space between platen mm 400-900 450-1200 500-1300
Platen size W*H mm 740*740 880*880 1020*1000
Max.mould size mm 550*650 700*850 800*1200
Platen moving stroke mm 1400 1800 1900
Heating power of die head Kw 20 28 30
Machine dimension L*W*H m 5.2*8.5*3.5 5.6*9.2*3.8 6.0*10.2*4.2
Machine weight T 16 23 25
Total power Kw 115 145 195

Certifications
Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 8 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Chuzhou City of Anhui Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Exhibition
Packaging & Shipping
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight or ****** trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
