Basic Info.
Motor Power
3kw/4.5kw/5.5kw/6kw
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Working Area
1200mm*2400mm
Processing Precision
0.005mm
Reposition Precision
0.05mm
Table Structure
Aluminium
X,Y,Z Structure
X,Y,Z Ballscrew
Max Processing Speed
6000mm/Min
Spindle Power
3kw/4.5kw/5.5kw/6kw
Transport Package
Plywood Box, Free From Fumigation
Origin
Jinan, Shandong, China
Production Capacity
50 Sets Per Month
Product Description

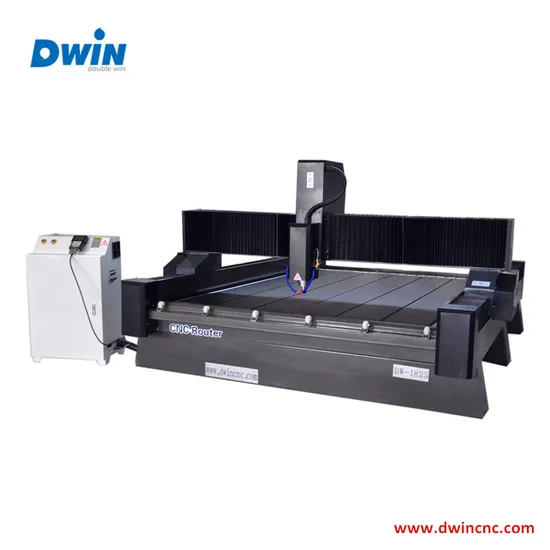

CNC Router Metal Cutting Machine for Sale (DW1224)
Feature:
1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system.
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone.
4.Adopt Taiwan transducer with stable output signals.
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger.
7.Whole seamless steel structure,can load weight up to 1000kg.
Performance Features:
1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
Applicable industry:
Quarried stone,artcraft,tombstone,building,etc.
Applicable materials:
Marble,glass,tile,granite,white marble,sandstone,metals,etc.
Technical data:
X,Y Working area : | 1200mm*2400mm |
Z Working area: | 250mm |
Resolution ratio: | 0.005mm |
Reposition precision | 0.05mm |
Spindle Power | 3kw/4.5kw/5.5kw/6kw |
Table structure | Aluminium |
Operation code: | G CODE |
Surrounding software: | Windows98/2000/xp |
Max carving speed: | 6000mm/min |
Operation system | PCI CARD control |
Working voltage: | AC380V/50Hz |
X,Y,Z structure | X,Y,Z ballscrew |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper motor |
Machine details
Spindle with waterjet
Machine working table
Sample
Machine packing
