Cw-4000 Stirring Double Cone Mixing Machine for Pharmaceuticals

US$1.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Cw-4000
Application Area
Pharmaceutical, Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Spiral
Working
Shear Mixer
Barrel Volume(L)
4000
Mixing Motor
15
Stirring Motor
5.5
Mixing Rotary Speed (Rpm/Min)
6
Stirring Rotary Speed(Rpm/Min)
20
Mixer Type
Double Screw Cone Mixer
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating type
Cycle Operating
Transport Package
Seaworthy
Specification
GMP
Trademark
SPM
Origin
Shanghai
HS Code
8474390000
Production Capacity
4000L/Load

Product Description

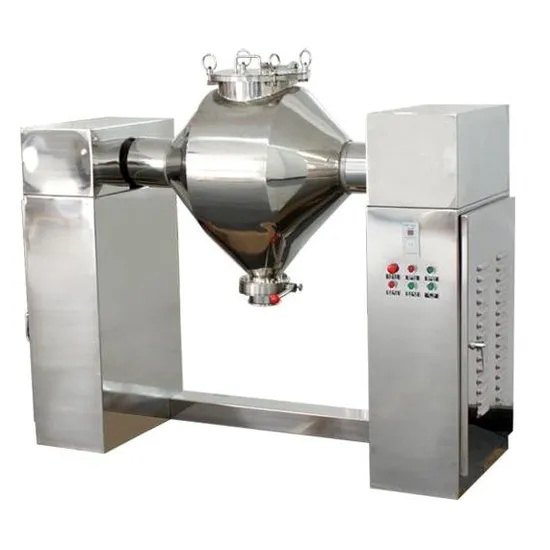

Cw-4000 Stirring Double Cone Mixing Machine for Pharmaceuticals
Model:CW-4000
Barrel Volume(L):4000
Mixing motor:15
Stirring motor:5.5
Mixing rotary speed (rpm/min):6
Stirring rotary speed(rpm/min):20
Overall dimension:4800×1300×3800
Features:
This machine can rapidly mix such materials as easy clot and with certain water content, having fast mixing speed and good mixing effect. Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation and maintenance.

Main Application:
Our company develops CW series stirring mixer under absorption of foreign new technology, based on W series double cone mixer, this machine adds stirring unit, which can be used for material mixing in industries as pharmacy, foodstuff, chemical industries as pharmacy, foodstuff, chemical industry and feedstuff etc.

Technical Parameter:
Model Barrel Volume
(L)
Mixing motor Stirring motor Mixing rotary speed
(rpm/min)
Stirring rotary speed(rpm/min) Overall
dimension
CW-50 50 1.1 0.75 20 60 1500*450*1200
CW-100 100 1.5 1.1 20 60 1550*550*13500
CW-200 200 2.2 1.1 20 60 1800*700*1500
CW-300 300 2.2 1.1 20 60 2100*760*1760
CW-500 500 3 2.2 20 60 2320*950*1920
CW-1000 1000 5.5 2.2 10 40 2450*1050*2500
CW-1500 1500 7.5 4 10 40 2900*1300*2700
CW-2000 2000 7.5 4 8 30 3000*1400*3100
CW-2500 2500 11 5.5 6 20 3600*1400*3200
CW-3000 3000 11 5.5 6 20 4000*1500*3500
CW-4000 4000 15 5.5 6 20 4800×1300×3800
CW-5000 5000 15 7.5 5 20 5400×1300×4000
CW-6000 6000 17.5 7.5 5 20 5650×1300×4380
