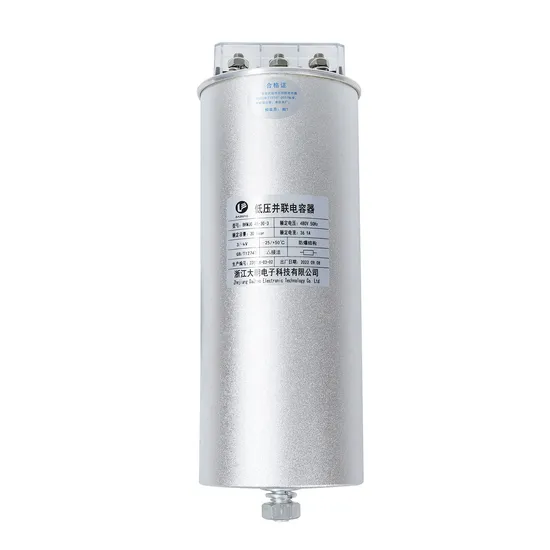

Self-Healing Reactive Power Compensation Capacitor

Product Description

Product Model	Rated Current (A)	Rated Capacity (μF)	Overall Dimensions (MM)		Installation Size (MM)
			Φ	H
0.25-05-3YN	6.7	254.8	86	245	M12x16
0.25-10-3YN	13.3	509.6	86	245	M12x16
0.25-15-3YN	20	764.3	96	245	M16x25
0.25-20-3YN	26.7	1019.1	106	245	M16x25
0.25-25-3YN	33.3	1273.9	116	290	M16x25
0.25-30-3YN	40	1528.7	126	290	M16x25
0.28-05-3YN	6.0	203.1	86	245	M12x16
0.28-10-3YN	11.9	406.2	86	245	M12x16
0.28-15-3YN	17.9	609.3	86	245	M12x16
0.28-20-3YN	23.8	812.4	96	245	M16x25
0.28-25-3YN	29.8	1015.5	106	290	M16x25
0.28-30-3YN	35.7	1218.6	116	290	M16x25
0.28-40-3YN	47.6	1624.0	126	290	M16x25
0.30-05-3YN	5.6	176.9	86	245	M12x16
0.30-10-3YN	11.1	353.9	86	245	M12x16
0.30-15-3YN	16.7	530.8	86	245	M12x16
0.30-20-3YN	22.2	707.7	96	245	M16x25
0.30-25-3YN	27.8	884.6	96	290	M16x25
0.30-30-3YN	33.3	1061.6	106	290	M16x25
0.30-40-3YN	44.4	1414.7	116	290	M16x25
Note: The product series is updated in real-time. Please consult the sales personnel of Dazhao Electronics.
Product Model	Rated Current (A)	Rated Capacity (μF)	Overall Dimensions (MM)		Installation Size (MM)
			Φ	H
0.40-05-3	7.2	99.5	76	245	M12x16
0.40-10-3	14.4	199	76	245	M12x16
0.40-15-3	21.7	298.6	86	245	M12x16
0.40-20-3	28.9	398.1	95	245	M16x25
0.40-25-3	36.1	497.6	106	245	M16x25
0.40-30-3	43.3	597.1	116	290	M16x25
0.40-40-3	57.7	796.2	126	290	M16x25
0.45-05-3	6.4	78.6	76	245	M12x16
0.45-10-3	12.8	157.3	76	245	M12x16
0.45-15-3	19.2	235.9	76	245	M12x16
0.45-20-3	25.7	314.5	96	245	M16x25
0.45-25-3	32.1	393.2	106	245	M16x25
0.45-30-3	38.5	471.8	116	245	M16x25
0.45-40-3	51.3	629.1	126	290	M16x25
0.48-05-3	6.0	69.1	76	245	M12x16
0.48-10-3	12.0	138.2	76	245	M12x16
0.48-15-3	18.0	207.3	86	245	M12x16
0.48-20-3	24.1	276.5	96	245	M16x25
0.48-25-3	30.1	345.6	96	290	M16x25
0.48-30-3	36.1	414.7	116	290	M16x25
0.48-40-3	48.1	552.9	126	290	M16x25
0.48-50-3	60.1	690.8	136	340	M16x25
0.525-05-3	5.5	57.8	76	245	M12x16
0.525-10-3	11.0	115.5	76	245	M12x16
0.525-15-3	16.5	173.3	76	245	M12x16
0.525-20-3	22.0	231.1	86	245	M12x16
0.525-25-3	27.5	288.9	96	245	M16x25
0.525-30-3	33.0	346.6	116	290	M16x25
0.525-40-3	44.0	462.2	126	290	M16x25
Note: The product series is updated in real-time. Please consult the sales personnel of Dazhao Electronics.

Product Details
Capacitance range:1-40Kvar
Rated voltage:230VAC ~ 1000VAC
Execution standard:GB/T12747-2017 IEC60831-1996
Company Profile
Zhejiang Da ZHAO Electronic Technology Co., LTD. Is A RESEARCH and development, manufacturing, sales and service in one of the metallized film capacitor production technology enterprises.
The company was founded in 1996, located in Jiaxing CITY, the land of fish and rice, has nearly 30 years of history, the production base is set up in Yuyao City.
The company has more than 160 employees, and the technical management has more than 20 years of experience in capacitor research and development, design, manufacturing process and production management.
Company has invested nearly 50 million yuan of independent research and development environment of constant temperature and humidity control system, the introduction of domestic and foreign advanced automatic film cutting equipment, high precision winding equipment, two-sided spray gold closed system for independent innovation, as well as the electric power capacitor pressure testing machine, electric power capacitor durability test-bed, capacitor aging test bench, ROHS spectrum analyzer and other equipment and production line.
The annual production capacity of the company can exceed 500,000 units, which is the leading level in the domestic low-voltage capacitor industry.
The company's whole series of products through the power capacitor durability life certification, is the first batch of certificate winner; In the same period, the whole series of products have passed the CQC, CCC, VDE, CE, CB, UL inspection certification, is the national specification and national standard implementation of the forerunner.

---
