Gear Drive Round Column Vertical Drilling Machine (Z5040)

US$2,600.00
1-2 Pieces
US$2,200.00
3+ Pieces

Basic Info.

Model NO.
Z5040
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
No CNC
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Z5040
Vertical Round Column Drilling Machine
Max.Drilling Capacity
40mm
Distance Spindle Axis to Column Surface
350mm
Spindle Taper
Mt4
Spindle Travel
180mm
Spindle Speeds Range
50-1450rpm
Packing Dimension
2270X690X1100mm
Fast Moving Motor of The Worktable
0.85/1.5kw
Table Size
560X560mm
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459290000
Production Capacity
200sets/Month

Product Description

Product Description

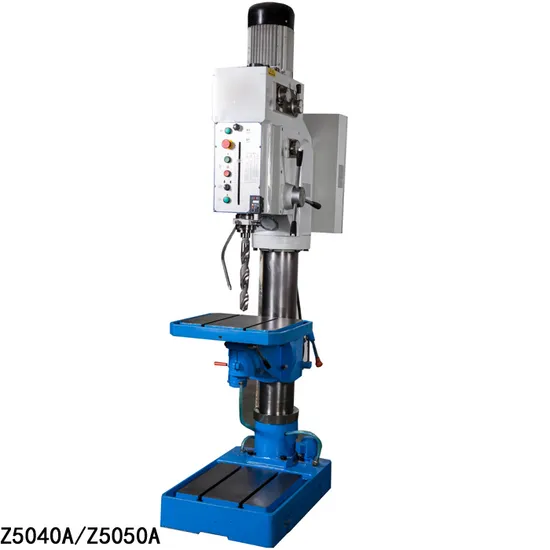

Vertical round column drilling machine (Z5040)
Main features:
1.Ideal for industrial workshop use
2.Geared head drilling machine with 4 morse taper spindle
3.Thread tapping with auto reverse
4.Automatic feed range (0.1, 0.2mm/rev)
5.18 drilling speeds from 50-1450rpm
6.Chuck guard with micro-switch
7.Drill ejector incorporated in machine
8.Coolant pump system with flexible hose

Product Parameters
Specification of our vertical round column drilling machine Z5040:
Model Z5040 Z5040E
Mechnical feed Electronic power feed
Max.drilling capacity 40 40
Threading in steel & last iron M20&M24 M20&M24
Spindle travel 180mm 180mm
Spindle taper MT4 MT4
Spindle speed 50-1450rpm 50-1450rpm
Width of T-slot 18mm 18mm
Max.distance from spindle axis to surface of column 350mm 350mm
Max.distance from spindle end to surface of table 770mm 770mm
Max.distance from spindle end to surface of base 1210 1210
Table size 560×560 560×560
Base size 730×500 730×500
Motor power 0.85/1.5kw 0.85/1.5kw
NW/GW 465kg/615kg 465kg/615kg
Packing size 2270×690×1100mm 2270×690×1100mm

Standard accessories:
1.Keyless drill chuck 1 - 16 mm / B 18
2.Drill chuck arbor MT 3 / B 18
3.Morse taper drill sleeve MT 4 / 3, MT 4 / 2
4.Coolant pump
5.Electromagnetic spindle feed
6.Thread cutting device
7.Initial filling with Shell Tellus 46
8.Machine light
9.Protective cover

Optional accessories:
1.Morse taper drill sleeve
2.Spindel taper wiper MT 4
3.Double roller tapping chuck
4.Deluxe clamping kit set 52 pcs., 18 mm, M 16 (Art.Nr.:28-1003)
5.Drilling machine vise
6.TiN-coated HSS drills
7.Metric size taper shank drills
8.Machine mount MS 80
9.Bernardo Drilling fluid drill, 1:20 dilutable, 5 l canister
