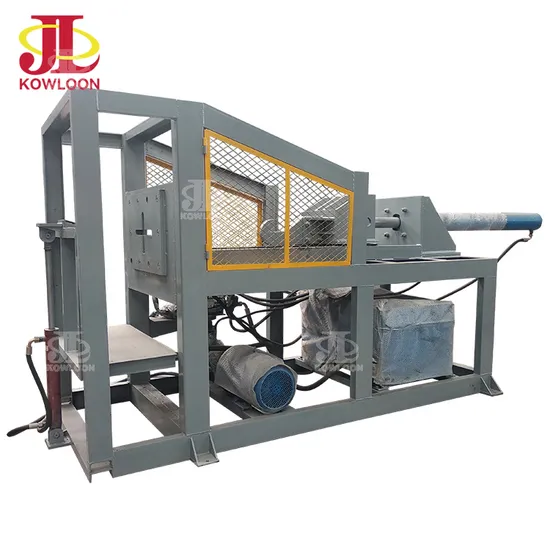

Industrial Jltd1600 Tire Bead Wire Separator Tire Bead Wire Remover Debeader for Tires

US$10,000.00-39,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JLTD1200, JLTD1600
Service Life
≥15 Years
Certification
CE, ISO, SGS
Voltage
220V
Type
Tyre Debeader
Model
Jltd1200/ Jltd1600
Raw Material
Car/Truck/Bus/Mining Tires, Scrap Rubber
Motor
37kw/45kw
Application
Waste Tire Recycling System
Route of Hydraulic Cylinder
1200mm/1600mm
Core Components
Motor, Pump, Hydraulic Cylinder, Hydraulic Pump
Commissioning
Support
Maintenance
Support
Training Worker
Support
Transport Package
Wooden Case or Container
Specification
Standard size or customized size
Trademark
Kowloon Machinery
Origin
Zhengzhou, China
Production Capacity
150 Sets/Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100000.000kg

Product Description

High Output Tyre Shredder Tire Bead Extractor Steel Wire Tire Truck Removal
Product Description
What Exactly is a Tire Debeading Machine or Tire Debeader?
Tire debeader is a specially designed equipment to mechanically pull out the bead wires completely that are inside the sidewalls. After debeading, you send the tire for the shredding process. Removal of this bead bundle prior to shredding gives a cleaner end product and assures longer life of the operating blades of your shredder machinery. This allows a smooth shredding operation and also cuts down on your maintenance down time.
Tire Wire Drawing Machine
1. Hydraulic waste tire wire drawing machine is used to completely pull out the large strands of steel wire on both sides of the tire at one time, and smoothly separates the steel wire and rubber, and its purpose is to facilitate the subsequent crushing or cutting process.
2.Kowloon tyre steel drawing machine is composed of motor, hydraulic system, pull hook, cross plate, body, control handle, guide wheel, etc., which is mainly suitable for recycling of waste tires in waste tire recycling line.
3. Double hooks are designed for wire drawing, which has high separation efficiency and reduces labor intensity of workers.
ModelJLTD1200JLTD1600
Power37kw45kw
Route of hydraulic cylinder1200mm1600mm
Max tire application range≤1200mm diameter1200-1600mm diameter
Working pressure15tons18tons
Working capacity30-60tires/hour30-60tires/hour
Dimension (L*W*H)4100*1300*1750mm5000*1500*1900mm
Weight2000kg3500kg
Details Show
Tire Bead Extractor
The tire bead extractor is a device used to pull out the steel wire from the sidewall of the waste tire, it separates the steel wire and rubber for reuse. The tire wire drawing machine is powered by the hydraulic system to drive the pull rod with hook to reciprocate. Hydraulic cylinder is designed with strong pulling force to pull out the steel wire as a whole. The whole process integrates tearing, breaking, and steel wire separation, electro-hydraulic works at the same time, high efficiency pull out in short time.
Technical Features
1. Hydraulic drive, safe and reliable.
2. Super large pulling force, long stroke, short drawing time.
Applications
1. Waste tire recycling system, Waste Tire Shredding Plant, Tire Recycling Plant, Tire Recycling Shredder, Tire Recycling Machine,
2. tire recycling disposal line.Working Principle of Tire DebeaderThe motor drives the hydraulic system and the oil cylinder of the double hooks tire steel wire drawing machine, and the draw hook is connected to the draw rod of the oil cylinder. Due to the movement of the oil pump and the oil cylinder, the draw hook is reciprocated. Place the tire on the feeding mouth, extend the pull hook out of the feeding mouth, hook the inner steel part of tire ring, and then start the button. Due to the strong pulling force of the oil cylinder, the steel wire will be pulled out as a whole, and the sidewall part is caused to tear the rubber due to the action of the pulling force, thereby achieving the purpose of separating the steel wire from the tire.Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer CooperationZhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
