Basic Info.
Automatic Grade
Automatic
Place of Origin
Shandong, China
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Tire Machine Type
Tire Recycling Machine
Applicable Industries
Manufacturing Plant
Key Selling Points
Competitive Price
Core Components
Engine, Motor
Product Name
Rubber Strainer
Voltage
318V, 3 Phases, 50Hz
Application
Rubbers Recycling Industry
Machinery Test Report
Provided
Transport Package
Suitable for Long Sea Transportation
Specification
3300*1900*2900mm
Production Capacity
200sets Per Year
Product Description

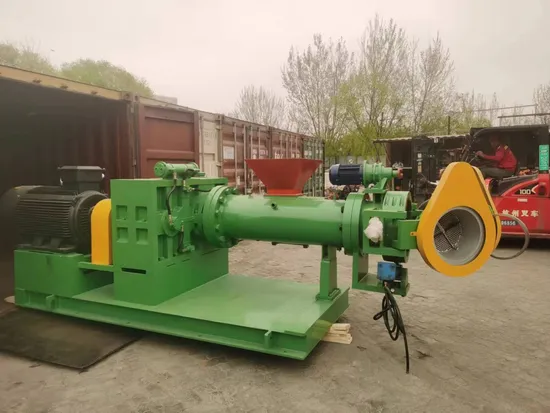

China Manufacturer Rubber Strainer Machine For Straining Impurities Out Of Reclaimed Rubber Product Description Introduction: The strainer is used for straining impurities out of rubber compound or reclaimed rubber. Features: 1)The rubber strainer can be used in different applications, including single head, double head, hot feed, cold feed, etc.
2)The head is fitted with a mechanical cutter,which opreates hydraulically,The operation is simple and easy.
3)The machine body is equipped with a temperature regulation device. The screw an bushes are subjected to nitrogenation treatment to get enough strength and excellent wear-resistance.
4)Cole feed rubber strainers of various specifications are supplied for users to select.
Product Parameters
Type | XJL-120 | XJL-150 | XJL-200 | XJL-250 |
Screw diameter(mm) | 120 | 200 | 200 | 250 |
Length-diameter ratio(L/D) | 4.8:1 | 4.8:1 | 5:1 | 4.5:1 |
The highest rotation speed of screw(r/min) | 45 | 45 | 40 | 40 |
Main motor power(kw) | 22 | 37 | 75 | 110 |
Steam pressure(MPA) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Cooling water pressure(MPA) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
Max. production capacity(kg/h) | 180 | 400 | 800 | 1600 |
Detailed Photos
Packaging & Shipping
Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional manufacturer of rubber machines for over 20 years.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, tire reclaim rubberr machine, butyl reclaim rubber machine, EPDM rerclaim rubber machine, rubber powder machine, rubber mixing production line,etc. We enjoy good repuation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business realtions and develop domestic and international market jointly on the base of equality and mutual benefits.
FAQ Q1. WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2. ARE YOU A COMPREHENSIVE SUPPLIER FOR RUBBER & PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We have the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experienced technical engineers for overseas service, they would help you install the machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is dependent on the machine options. Normally, the delivery time of a standard machine could be within 10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be dependent.
>>
