Shaded Pole Electrical Electric AC Asynchronous Fan Single Phase Motor for Bathroom Ventilation Oven Exhaust Pump 58serise Air Purifier Refrigerator Freezer

US$0.95-1.20 1,000 Pieces (MOQ)

Basic Info.

Model NO.
5812
Number of Stator
Single-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC
Brand
Fine Watt
Voltage
110-220VAC
Rotation
Ccw/Cw
Frequency
50Hz
Power
10-50W
Insulation Class
a B F H
Shaft Diameter
4-5mm
Protection
IP 34
Lamiation Size
12-30mm
Speed Value
3000rpm
Torque
6.7mnm
Wire
Copper/Aluminum
Bearing
Ball/Oil Bearing
Transport Package
Carton
Specification
cooper wire
Trademark
Fine Watt
Origin
China
HS Code
8501400000
Production Capacity
2000000PCS /Year

Packaging & Delivery

Package Size
20.00cm * 15.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description


Product Description

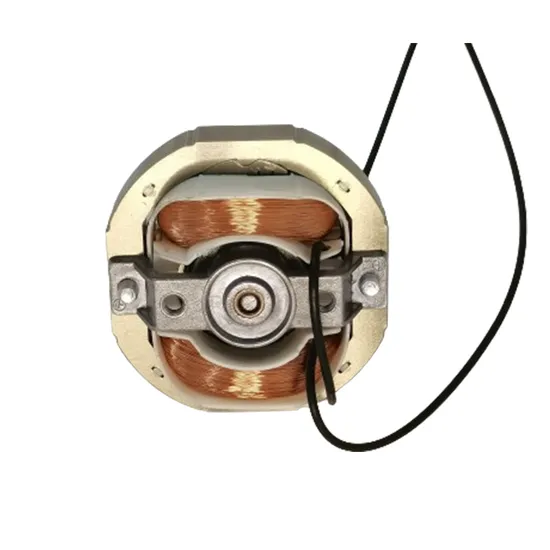

58series shaded Pole Motor
Motor Description:
1.Our motors performance(data) are per customers` requirments.
2.Motor wires are cooper and some could be used aluminium wire to save cost
3.Motors could be used ball bearing and oil bear(Sleeve bearing) both.
4.Insulation Class B/F
withstand voltage:1800V/S/0.5mA
Rotation:CW (view from the shaft side)
Noise<50dB
Interturn Isulation:>2100V
Isulation Resistance:20MΩ
IP:34
Life span:>2000Hours (continuous working).Normal use:10 years
Operation Temperature/Humidity Range:-40°C to +65°C, 0%~95%
5.Safe,reliable, low noise, high performance,characteristics hard, good and stable starting, long life, etc.
6.Typical Application: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Product Parameters
MODEL A OF SIZE SHAFT DIA VOLT POWER TORQUE SPEED RATED
YJ5812 12MM 4MM 110-240V 10W 6.71mN.m 3000RPM
YJ5816 13MM 4MM 110-240V 13W 6.85mN.m 3000RPM
YJ5820 20MM 5MM 110-240V 15W 8.89mN.m 3400RPM
YJ5830 30MM 4MM 110-240V 50W 12.9mN.m 3400RPM
Motor Application

Workshop Show

Certifications
Packaging & Shipping

Recommend products
Company Profile
Fine Watt motor was set up in 2016. We always focus on electric motors developing and producing. Currently we locate in Huzhou Zhejiang. It has an area of 6000 square meters plants and more than 100 employees, annual output is 2million PCS and has 5 million PCS annual producing capacity. After several years development, we had built a great reputation in the market and got more and more customers′ trust in the world.
We are professional with both AC and DC motors,AC motor like capacitor motor,pump motor,single phase and three phase motors. DC motor like brushless dc motor and brushed dc motor,high voltage 120V and 230V .Low voltage like 5V 12V 24V 48V. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines ,washing machine and many other equipments.
As a realiable quality guaranty, Fine Watt Motor has completed R&D departement, producing department, QC department, purchase department etc. Perfectly producing equipments like Aluminum diecasting, Zinc diecasting, Sheet metal stamping, wiring machine,etc
As the key part of technology,our engineer director graduated from Zhejiang University majoring in electrical engineering, engaged in motor research and development, design has more than 30 years of work experience. Has participated in and presided over more than 10 technical process transformation projects, greatly improving product quality and production efficiency.
To ensure motor quality, our motor materials are complianced with Reach and ROHS requirments which support us to provide excellent motor to our customers with strict requirments.
With the support of our customers, the growth of our management team, and the continuous innovation of technology, our motor business continues to grow. However, we always adhere to the policy of environmental protection and energy saving and the purpose of improving the quality of life and continue to grow our motor business gradually.
Company FAQ
(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
BLDC Motor,Shade Pole Motor,Capacitor Motor, PMDC Motor,Synchronous Motor,etc
(2) Q: Is it possible to visit your factory
A: Sure. We always like to meet our customer face to face,this is better for understanding.But please kindly keep us posted a few days in advance so we can make good arrangement.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will be difficult for us to provide, because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we will provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
(5)Q: What advantage do you have?
A: For motors, we have quality guarantee, if there is probelm motor after inspection in customer house,we will replace .
For service, we offer 24 hours technical support and barrier-free communication with excellent service people.
Technical service: Except offer actual motor products,we can also offer motor technical supporting seperately to our customer.Our engineers are represent the most advanced techonogy.
