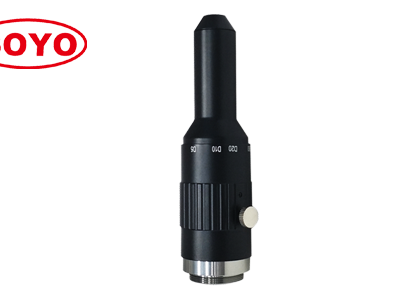

SRV3652 Inner wall surface Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3" Camera High Resolution Compact Object Lens For Rolling Tube Container Bottle Cup Inside Illumination Lighting
360°inner barrel inspection
* High resolution & compact size
* Inspect small size object at wide sight
* Application for tube, auto, container, bottle etc. inside inspection
Format
| SRV3652 ( 2/3" )
|
Resolution
| 3.0 Megapixel
|
Image circle
| Φ6.6mm
|
FOV Dia*Height
| 2/3"
| Standard 20*23mm ( Min.5*5 / Max.120*123 )
|
Wavelength
| 450~650nm
|
Diamension
| Φ33.6*113.6mm
|
Mount
| C
|
Diameter (mm)
| Height (mm)
| Working Distance (mm)
|
5
| 5
| 2.7
|
10
| 10
| 6
|
20
| 21
| 11
|
30
| 31
| 17.2
|
40
| 41
| 23
|
50
| 51.2
| 29
|
60
| 61.4
| 35
|
80
| 82
| 46.5
|
100
| 102
| 58.3
|
120
| 123
| 70
|
Picture 1 : Tea cup inner side inspection
Picture 2: Stainless steel pipe inner side inspection
